ESAB · Stick Welding (SMAW / MMA)
The ESAB Renegade ES 210i is a professional single-phase MMA (stick) and Live TIG welding machine running on 115 or 230 VAC, delivering 180 A at 27.2 V on a 25% duty cycle at 230 V, with an IP23 housing, active PFC for extension cables up to 100 m, and the arc characteristics to run 6010 cellulosic electrodes.
Price on request. POFIS is an ESAB Authorized Distributor & Service Centre in Abu Dhabi — quotations include confirmed lead time and delivery terms.
Where it is used
Features
Designed to weld with any type of electrode in superior quality, including 6010 cellulosic. Cellulosic electrodes need a high, responsive arc voltage that many small inverters cannot sustain — and they are what pipeline root runs are welded with, so this is a capability rather than a feature.
A built-in active power factor correction circuit provides an uninterrupted supply even with long extension cables, up to 100 m. On a site where the nearest socket is a long way from the joint, this is the specification that decides whether the arc is stable.
Accepts 115 or 230 VAC ±15% single phase at 50/60 Hz. Output roughly doubles on the higher supply — 110 A against 180 A in MMA at 25% duty cycle — so both figures are published on this page rather than just the headline.
ESAB describe the housing as their most resistant IP23 design, for indoor and outdoor use in demanding environments. A high-quality carry strap with multiple lift points is included.
A powerful voltage booster supplies the additional arc voltage cellulosic electrodes demand, which is what gives the superior cellulosic weld performance ESAB claim.

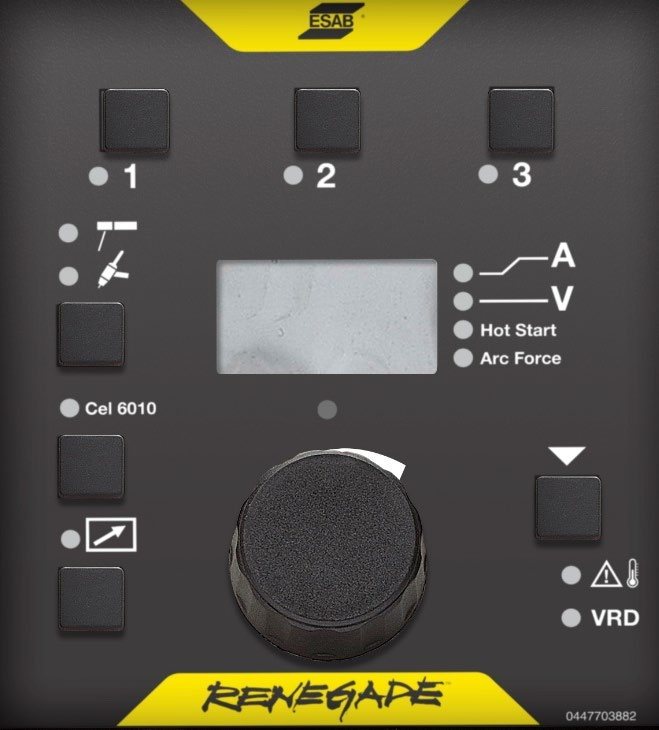

Direct access to parameters and memory buttons, with three memory settings, plus adjustable hot start and arc force for optimal arc adjustment. An easy-to-read, quick-to-set panel reduces downtime between jobs.
The ESAB Handy 200 electrode holder is included, along with a 3 m work lead and the shoulder strap — so the machine is ready to weld without an accessory order.
Technical data
Published manufacturer specifications. Where a figure affects your welding procedure, confirm it against the instruction manual for your specific configuration.
| Mains voltage | 115/230 VAC ±15%, 1 ph, 50/60 Hz |
|---|---|
| Fuse, slow | 16 A |
| Rated kVA | 3.3 kVA (115 VAC); 6 kVA (230 VAC) |
| Energy save mode | <30 W |
| Power factor at max current | 99% |
| Open circuit voltage | 78 VDC |
| At 230 VAC | 180 A / 27.2 V at 25% duty cycle; 116 A / 24.6 V at 60%; 90 A / 23.6 V at 100% |
|---|---|
| At 115 VAC | 110 A / 24.4 V at 25% duty cycle; 71 A / 22.8 V at 60%; 55 A / 22.2 V at 100% |
| Setting range | 115 VAC: 15 A / 20.6 V – 110 A / 24.4 V; 230 VAC: 15 A / 20.6 V – 180 A / 28.4 V |
| At 230 VAC | 210 A / 18.4 V at 25% duty cycle; 135 A / 15.4 V at 60%; 105 A / 14.2 V at 100% |
|---|---|
| At 115 VAC | 140 A / 15.6 V at 25% duty cycle; 90 A / 13.6 V at 60%; 80 A / 12.8 V at 100% |
| Setting range | 115 VAC: 10 A / 10.4 V – 140 A / 15.6 V; 230 VAC: 10 A / 10.4 V – 210 A / 18.4 V |
| Dimensions | 460 × 200 × 320 mm |
|---|---|
| Enclosure class | IP23 |
| Operating temperature | −10 °C to +40 °C (+14 °F to +104 °F) |
| Maximum electrode size | 4 mm |
Ordering information
Quote these part numbers on your enquiry or LPO to guarantee the exact configuration. If you are unsure which variant suits your application, send us the joint details and we will specify it.
| Description | Part number |
|---|---|
| Renegade ES 210i Delivery includes power source, 3 m work lead, 3 m electrode holder and shoulder strap. | 0447700881 |
| Description | Part number |
|---|---|
| MMA 4 analogue remote control, incl. 10 m cable | 0700500084 |
| Electrode holder, Handy 200 A with 25 mm², 3 m, OKC 50 | 0700006900 |
| Return cable kit, OKC 50, 3 m | 0700006901 |
| Return cable kit, OKC 50, 5 m | 0700006885 |
| TIG foot control, 4.5 m (15 ft) cable and 8-pin connector | W4014450 |
| Trolley, 2-wheel, for Renegade | 0460330881 |
| Shoulder strap | 0445197880 |
| SR-B 17V torch, air-cooled, OKC 50, 4 m | 0700025514 |
| SR-B 26V torch, air-cooled, OKC 50, 4 m | 0700025522 |
Downloads
Need the instruction manual or spare parts list for this machine? Request it from weldiv@pofis.ae and we will send the current revision.
Frequently asked
Yes — ESAB state it is designed to weld with any type of electrode in superior quality, including 6010 cellulosic, and it has a powerful voltage booster to supply the additional arc voltage those electrodes need. That is the relevant capability for pipeline root runs.
On a 230 V supply, 180 A at 27.2 V on a 25% duty cycle in MMA, and 210 A at 18.4 V at 25% in TIG. On 115 V the figures fall to 110 A MMA and 140 A TIG. Both supplies are published on this page because the difference is substantial.
Up to 4 mm, with high output power. The MMA setting range on a 230 V supply is 15 A to 180 A.
Yes. A built-in active PFC circuit provides an uninterrupted supply even with extension cables up to 100 m, which is the usual limitation on site stick welding.
The ES 210i is single phase (115/230 V) at 180 A MMA and 4 mm electrodes. The ES 300i is three phase (230–480 V auto-sensing) at 300 A MMA and 6 mm electrodes, weighing 15 kg. Choose the 210i where only single-phase power is available, the 300i for larger electrodes and higher output.
Live TIG, rated 210 A at 18.4 V on a 25% duty cycle from a 230 V supply. SR-B 17V and SR-B 26V air-cooled torches are listed as accessories. For AC TIG on aluminium, a dedicated AC/DC machine is required.
POFIS is an ESAB Authorized Distributor and Service Centre in Abu Dhabi. Request a quotation on this page or email weldiv@pofis.ae for price, lead time and delivery terms.
Procurement & supply
The ESAB Renegade ES 210i is supplied from Abu Dhabi by Perfect Oilfield & Industrial Supply LLC as an ESAB Authorized Distributor and Service Centre. The information below covers what procurement and QA/QC departments normally need before raising a purchase order.
Stock items dispatch from Abu Dhabi within 24–48 hours. Indent items are quoted with a confirmed lead time at the time of offer.
POFIS is an approved ADNOC vendor and is listed on the approved vendor lists (AVL) of major operators and EPC contractors across the GCC. We can complete supplier registration and prequalification documentation on request.
Standard credit terms are available to registered corporate accounts. LPO, LC and advance payment are all accepted.
Delivery across the UAE and the wider GCC. Quotations can be issued on EXW, FOB, CIF or DDP terms to suit your project.
Full manufacturer warranty, honoured locally. As an ESAB Authorized Service Centre we carry out warranty work and repairs in Abu Dhabi rather than returning equipment abroad.
In-UAE service, commissioning, operator training and spare parts backing for every machine we supply.
