POFIS · Welding Division

Welding, cutting & NDT inspection catalog

Full technical specifications, ordering part numbers and datasheets for the welding, cutting and inspection products we supply from Abu Dhabi across the UAE and GCC — ESAB welding and cutting equipment, and Callington CalCheck NDT consumables. Every page carries the published manufacturer data so your engineering and QA/QC teams can verify a product before you raise the enquiry.

  • ISO 9001 Certified
  • Approved ADNOC Vendor
  • ESAB Authorized Distributor & Service Centre

Not sure which category you need? Open the Welding Map — every page we publish in one searchable view, laid out in the order a job runs.

Welding consumables

Filler metals, indexed by AWS classification

E7018, ER70S-6, E71T-1, E308L, E316L, E309L and E2209 — what each classification means, every ESAB grade that carries it, and the differences that decide which one belongs on your job.

Technical reference

Welding guides

The questions that come before the purchase order — re-drying temperatures, welding stainless to carbon steel, duplex heat input and interpass limits — answered with the figure and its source.

MIG/MAG & Flux-Cored Welding (GMAW / FCAW)

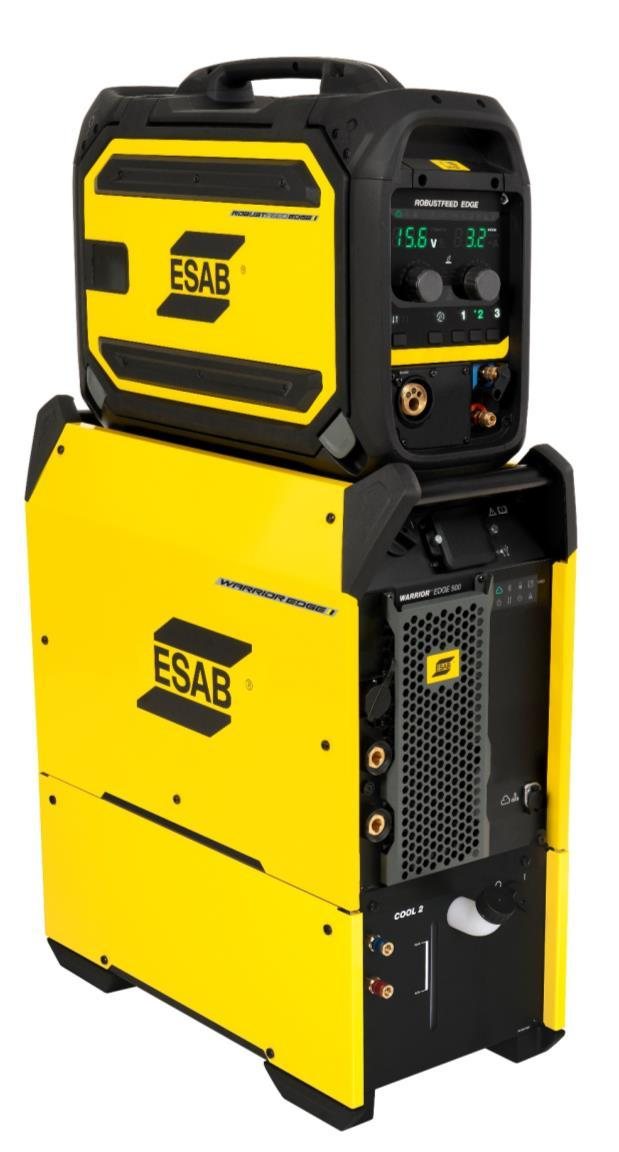

  • ESAB Warrior Edge 500 CX power source on a trolley with the Cool 2 cooling unit, and a RobustFeed Edge CX wire feeder mounted on top showing 15.6 V and 3.2 m/min on its display

    ESAB Warrior Edge 500 CX

    The ESAB Warrior Edge 500 CX is a 500 A multi-process welding power source for MIG/MAG, Flux-Cored, Stick and TIG welding, rated 500 A at 39.0 V on a 60% duty cycle and 400 A at 100% duty cycle from a 380–460 V three-phase supply, with integrated WeldCloud connectivity and the Pulse and SPEED WeldModes.

    Mains voltage
    380–460 V 3ph
    Welding output — GMAW (MIG/MAG)
    500 A @ 60%
    Continuous output at 100% duty cycle
    400 A @ 100%

    Part no. 0448500880

    Specifications & part numbers

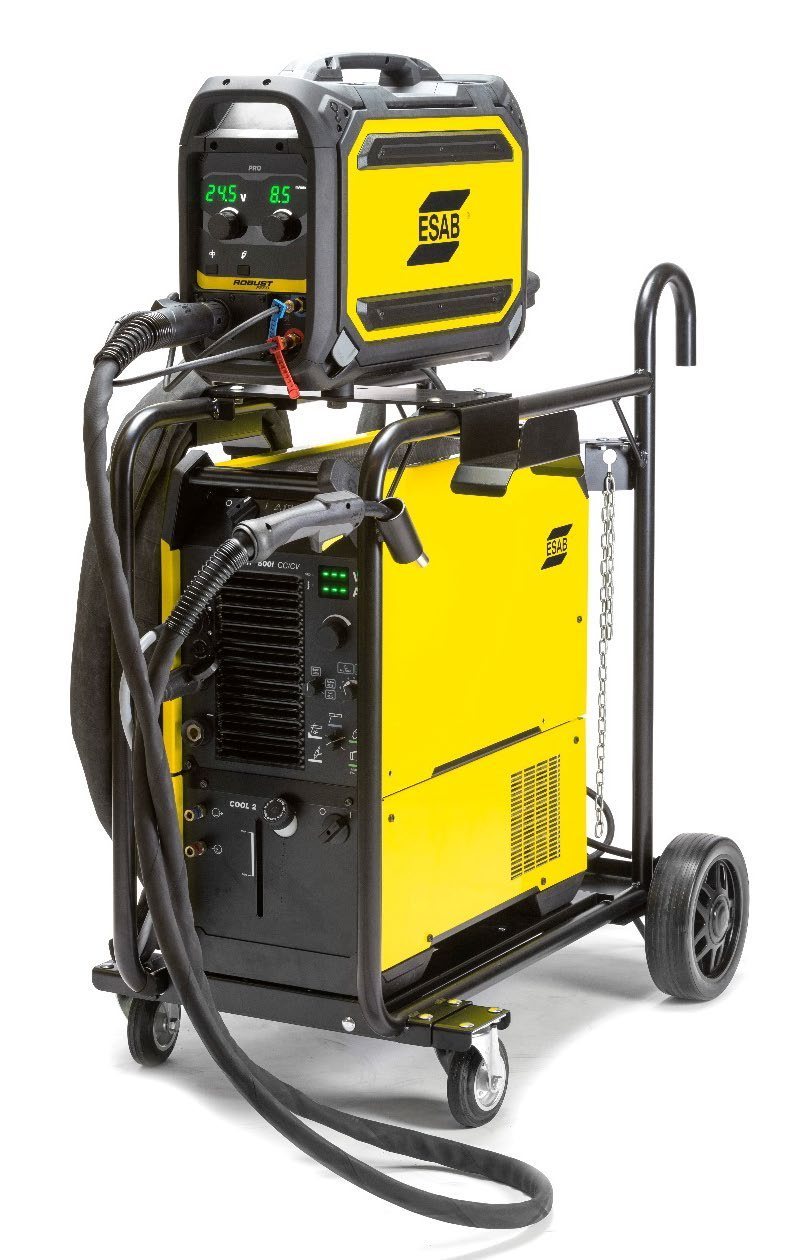

  • ESAB Warrior 500i CC/CV power source on a four-wheel trolley with a RobustFeed Pro wire feeder on top reading 24.5 V and 8.5 m per minute, with MIG torch and interconnection cables fitted

    ESAB Warrior 500i CC/CV

    The ESAB Warrior 500i CC/CV is a rugged 500 A multi-process welding power source for MIG/MAG, flux-cored, MMA (stick) and TIG welding, delivering 500 A at 39 V on a 60% duty cycle and 400 A at 100% duty cycle from a 380–415 V three-phase supply, built for heavy-duty indoor and outdoor fabrication.

    Mains voltage
    380–415 V 3ph
    Permissible load at 60% duty cycle, MIG/MAG
    500 A @ 60%
    Permissible load at 100% duty cycle, MIG/MAG
    400 A @ 100%

    Part no. A465350880

    Specifications & part numbers

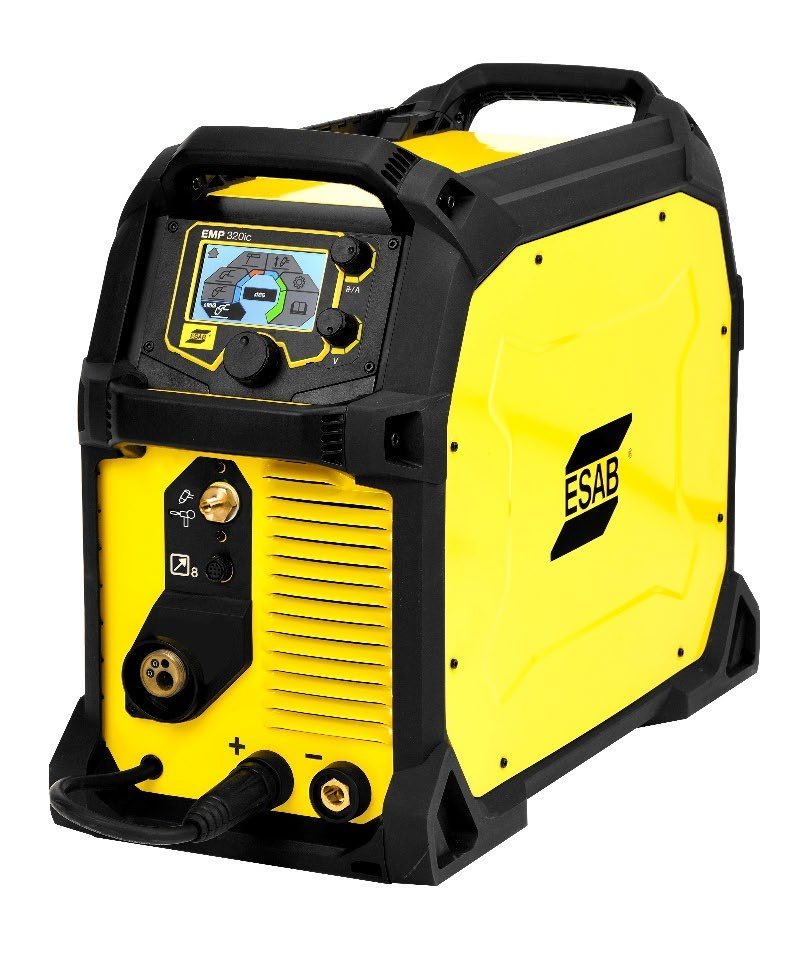

  • ESAB Rebel EMP 320ic multi-process welding machine, front three-quarter view showing the colour TFT display, Euro torch connection and welding terminals

    ESAB Rebel EMP 320ic

    The ESAB Rebel EMP 320ic is a 350 A industrial multi-process welding machine for MIG/MAG, flux-cored, MMA (stick) and Lift TIG welding, delivering 320 A at 40% duty cycle and 200 A at 100% duty cycle from a 400 V three-phase supply, in a portable 31.4 kg package with a 4-wheel wire feed and a multilingual TFT display.

    Primary voltage
    400 V 3ph
    Maximum output
    350 A
    MIG welding output
    320 A @ 40%

    Part no. 0700300991

    Specifications & part numbers

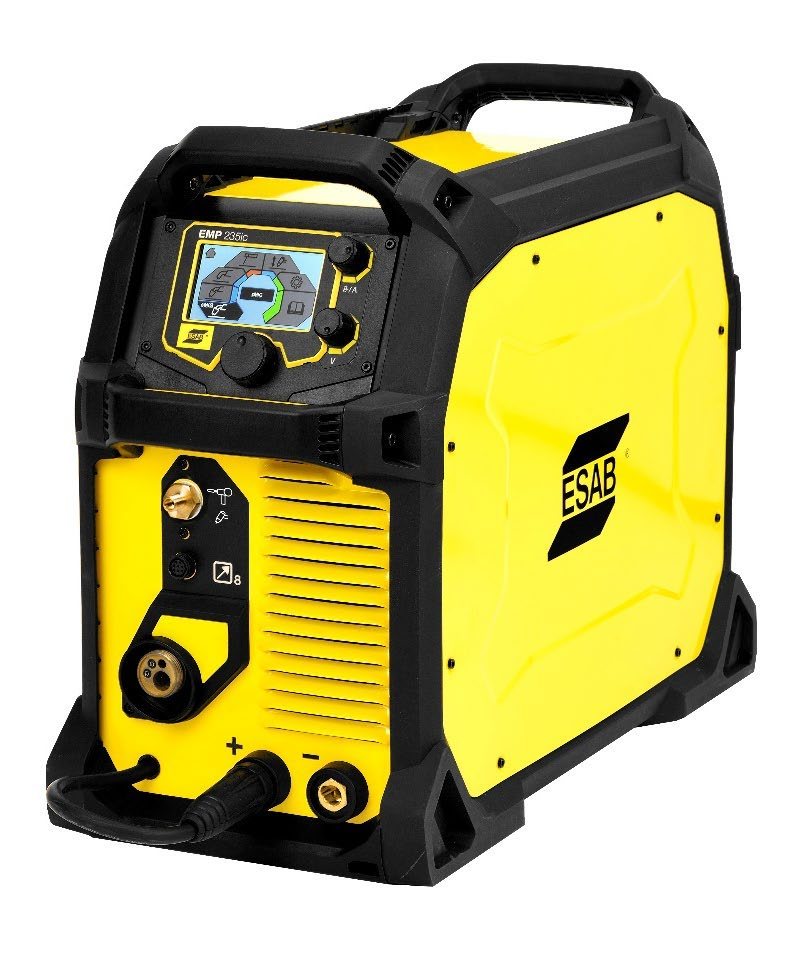

  • ESAB Rebel EMP 235ic dual-voltage welding machine, front three-quarter view showing the colour TFT panel, Euro torch connection and positive and negative terminals

    ESAB Rebel EMP 235ic

    The ESAB Rebel EMP 235ic is a 250 A dual-input-voltage multi-process welding machine for MIG/MAG, flux-cored, MMA (stick) and Lift TIG welding, running on 120 or 230 V single-phase power and delivering 230 A at 25% duty cycle in MIG, in a 28.6 kg portable roll-cage package.

    Primary voltage
    120/230 V 1ph
    Maximum output
    250 A
    MIG welding output (230 V)
    230 A @ 25%

    Part no. 0700300989

    Specifications & part numbers

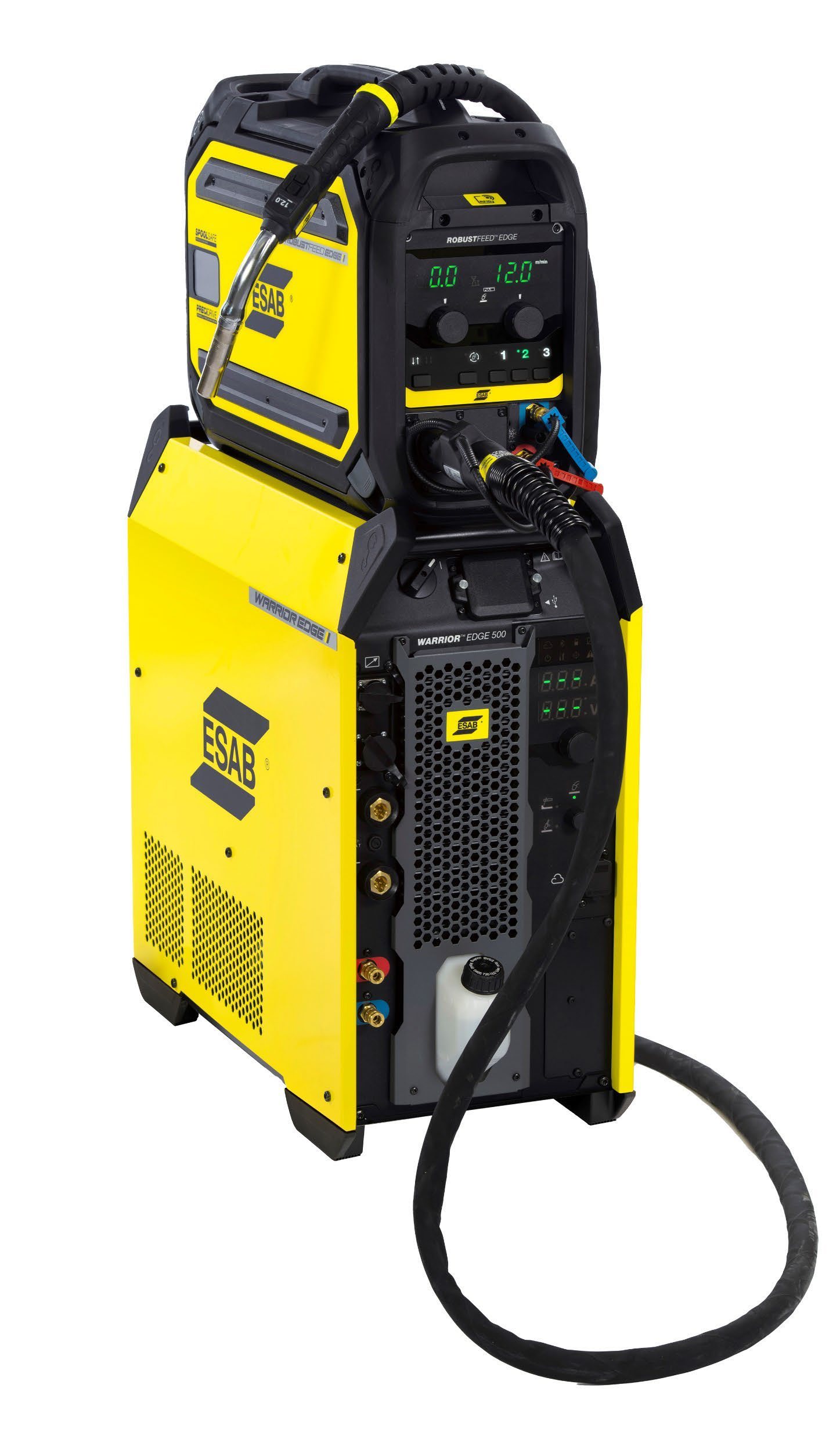

  • ESAB Warrior Edge 500 DX power source with a RobustFeed Edge CX wire feeder mounted on top and an Exeor DX torch connected

    ESAB Warrior Edge 500 DX

    The ESAB Warrior Edge 500 DX is a 500 A water-cooled multi-process welding power source for MIG/MAG, Flux-Cored, Stick and TIG welding, rated 500 A at 39.0 V on a 60% duty cycle and 400 A at 100%, with an integrated 1.4 kW cooling unit, WeldCloud connectivity and the Pulse, SPEED, THIN and ROOT WeldModes.

    Mains voltage
    380–460 V 3ph
    Welding output — GMAW (MIG/MAG)
    500 A @ 60%
    Continuous output at 100% duty cycle
    400 A @ 100%

    Part no. 0446300886

    Specifications & part numbers
  • ESAB RobustFeed Edge CX wire feeder mounted on a trolley above a Warrior Edge power source, with torch and interconnection cables fitted

    ESAB RobustFeed Edge BX & CX Wire Feeder

    The ESAB RobustFeed Edge is a water-cooled multi-process MIG wire feeder for heavy industrial welding, rated 500 A at 60% duty cycle and 400 A at 100%, with IP54 SpoolSafe protection, PreciDrive wire feed, RFID operator lockout and a 20 kg spool capacity, in BX and CX variants.

    Welding output at 40 °C
    500 A @ 60%
    Wire spool capacity
    20 kg spool
    Spool compartment protection
    IP54 SpoolSafe

    Part no. 0446600881

    Specifications & part numbers

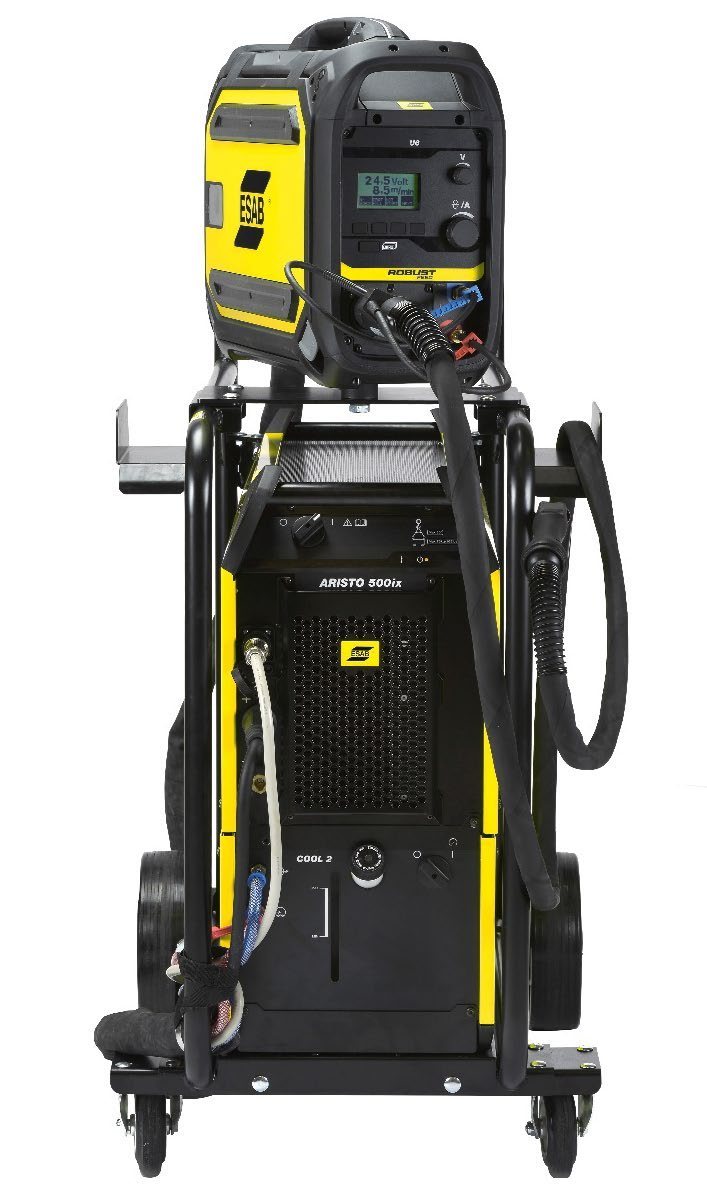

  • ESAB Aristo 500ix power source on its cart with a Robust Feed U6 wire feeder mounted above and cables stowed on the cable holders

    ESAB Aristo 500ix

    The ESAB Aristo 500ix is a 500 A portable heavy-industrial pulse MIG power source for MIG/MAG, Stick and TIG welding, rated 500 A at 39.0 V on a 60% duty cycle and 400 A at 100% from a 380–460 V three-phase supply, with QSet intelligent welding and up to 250 pre-programmed synergic lines.

    Mains voltage
    380–460 V 3ph
    Welding output — GMAW (MIG/MAG)
    500 A @ 60%
    Continuous output at 100% duty cycle
    400 A @ 100%

    Part no. 0446200880

    Specifications & part numbers

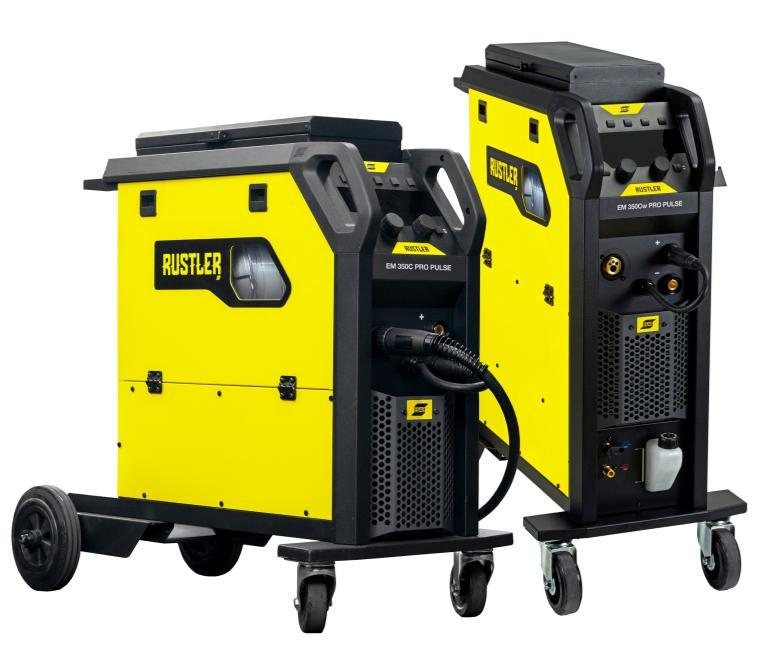

  • Two ESAB Rustler EM PRO compact MIG welding inverters side by side on wheels with torch holders and cable management

    ESAB Rustler EM PRO Compact

    The ESAB Rustler EM PRO Compact is a range of six compact MIG/MAG welding inverters from 280 A to 350 A at 40% duty cycle, running on 400 V three-phase power, with a premium 4-wheel drive feed mechanism, optimised arc programs for carbon steel, stainless, aluminium, brazing and flux-cored wire, and a built-in MMA mode.

    Rustler EM 280C PRO — MIG/MAG
    280 A @ 40%
    Rustler EM 350C / 350Cw PRO — MIG/MAG
    350 A @ 40%
    Wire diameter — all types
    0.8–1.2 mm

    Part no. 0448350881

    Specifications & part numbers

TIG Welding (GTAW)

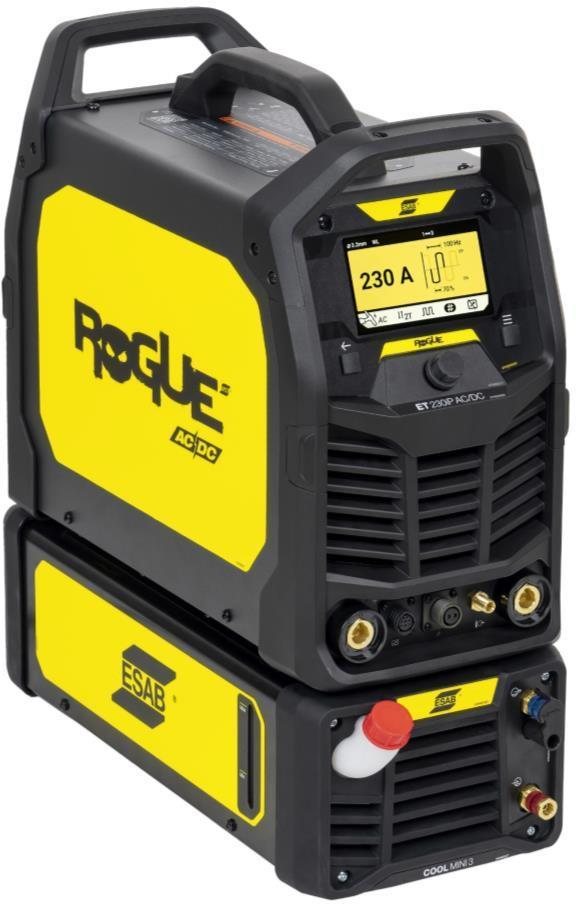

  • ESAB Rogue ET 230iP AC/DC TIG welding machine with the CoolMini 3 water cooler mounted beneath it, the five-inch colour display reading 230 A

    ESAB Rogue ET 230iP AC/DC

    The ESAB Rogue ET 230iP AC/DC is a portable 230 A AC/DC TIG welding machine for aluminium, stainless steel and carbon steel, running on 115 or 230 V single-phase power, with four selectable AC waveshapes, AC and DC pulse to 200 Hz, and a 5-inch colour display, in a 19 kg package.

    Mains voltage
    115/230 V 1ph
    TIG welding output (230 VAC)
    230 A @ 30%
    Weight
    19 kg

    Part no. 0700500214

    Specifications & part numbers

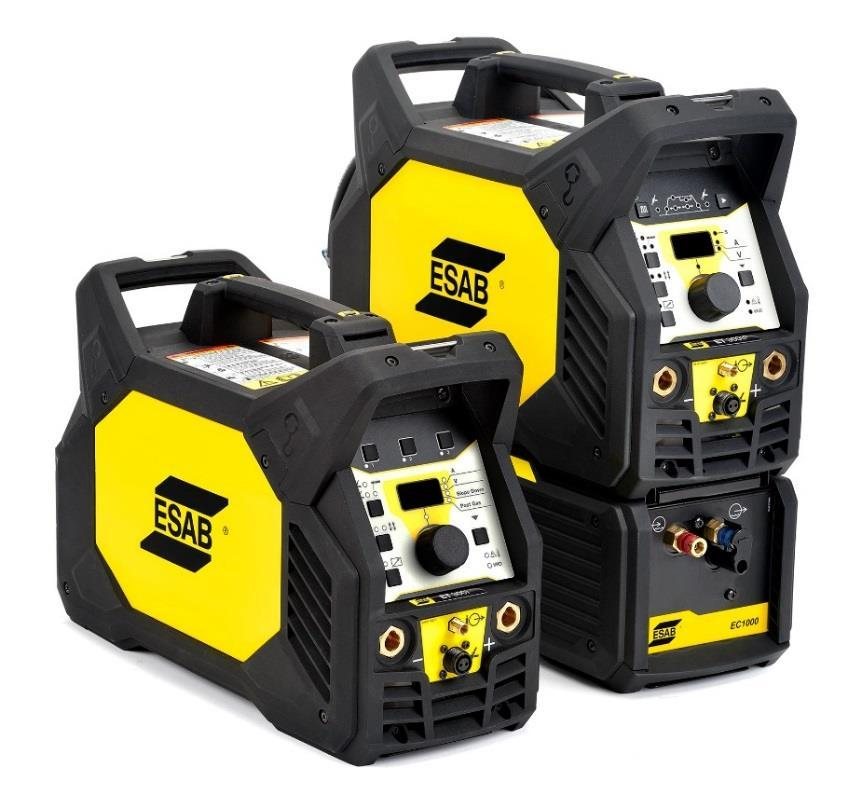

  • ESAB Renegade ET 300i and ET 300iP TIG welding machines side by side in rugged composite cases with carry handles

    ESAB Renegade ET 300i & ET 300iP

    The ESAB Renegade ET 300i is a 300 A inverter-based high-frequency TIG and MMA welding machine weighing 16.9 kg, with an automatic input voltage sensor accepting 208–528 V three-phase or 230 V single phase, rated for ambient temperatures up to +55 °C, available non-pulsed (ET 300i) or pulsed (ET 300iP).

    Primary voltage, 3 ph
    208–528 V
    Maximum output
    300 A
    TIG welding output
    300 A @ 60%

    Part no. 0445100900

    Specifications & part numbers

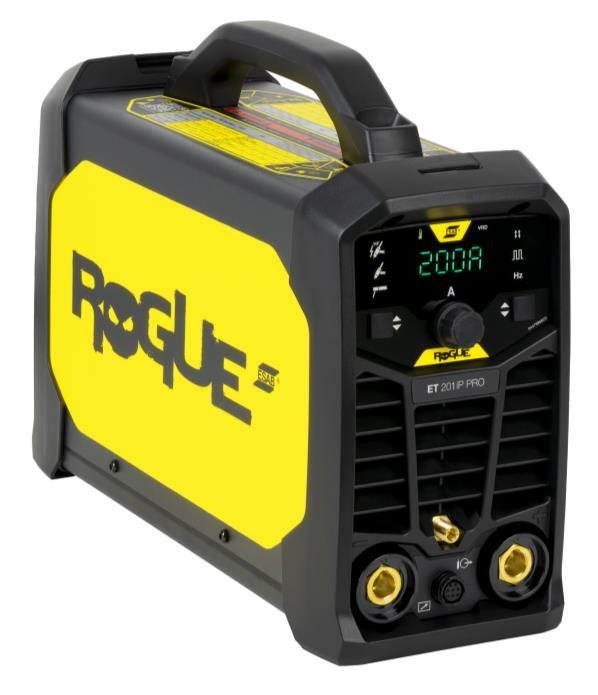

  • ESAB Rogue ET 201iP PRO portable TIG welding machine, yellow and black, with the display reading 200A

    ESAB Rogue ET 201iP PRO

    The ESAB Rogue ET 201iP PRO is a 200 A high-frequency start TIG and pulse MMA welding machine weighing 9.6 kg, running on 120 or 230 V single-phase power, with TIG pulse adjustable to 500 Hz, full TIG sequence control and an IP23S housing.

    Primary voltage, 1 ph
    120/230 V 1ph
    Maximum output
    200 A
    TIG welding output
    200 A TIG @ 25%

    Part no. 0705002010

    Specifications & part numbers

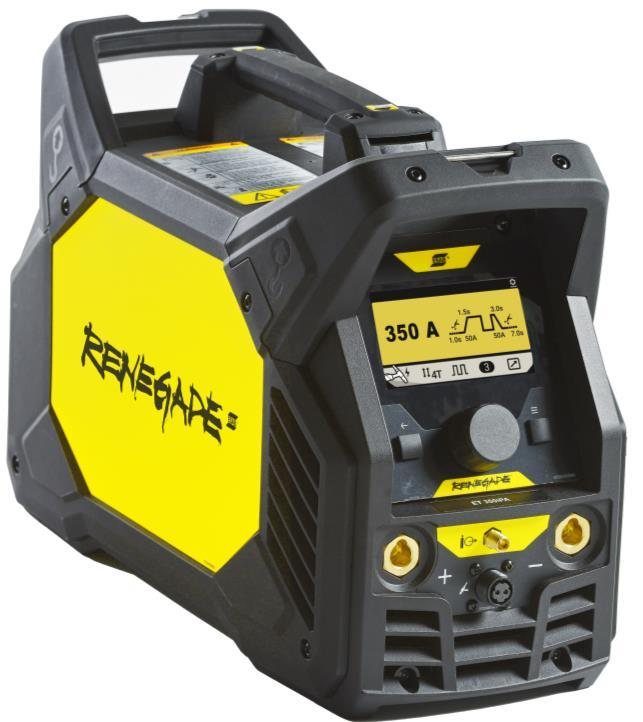

  • ESAB Renegade ET 350iPA TIG welding machine in rugged composite casing with TFT panel showing 350 A

    ESAB Renegade ET 350iPA

    The ESAB Renegade ET 350iPA is a 350 A inverter-based HF TIG and MMA welding machine weighing 16.3 kg, delivering 350 A at 24.0 V on a 60% duty cycle from a 400 V three-phase supply, with a TFT panel, engineered welding curves for cellulosic and rutile/basic electrodes, and MMA Pulse.

    Primary voltage, 3 ph
    400 V 3ph
    Open circuit voltage, with / without VRD
    VRD 15 V
    Maximum output
    350 A

    Part no. 0700402403

    Specifications & part numbers

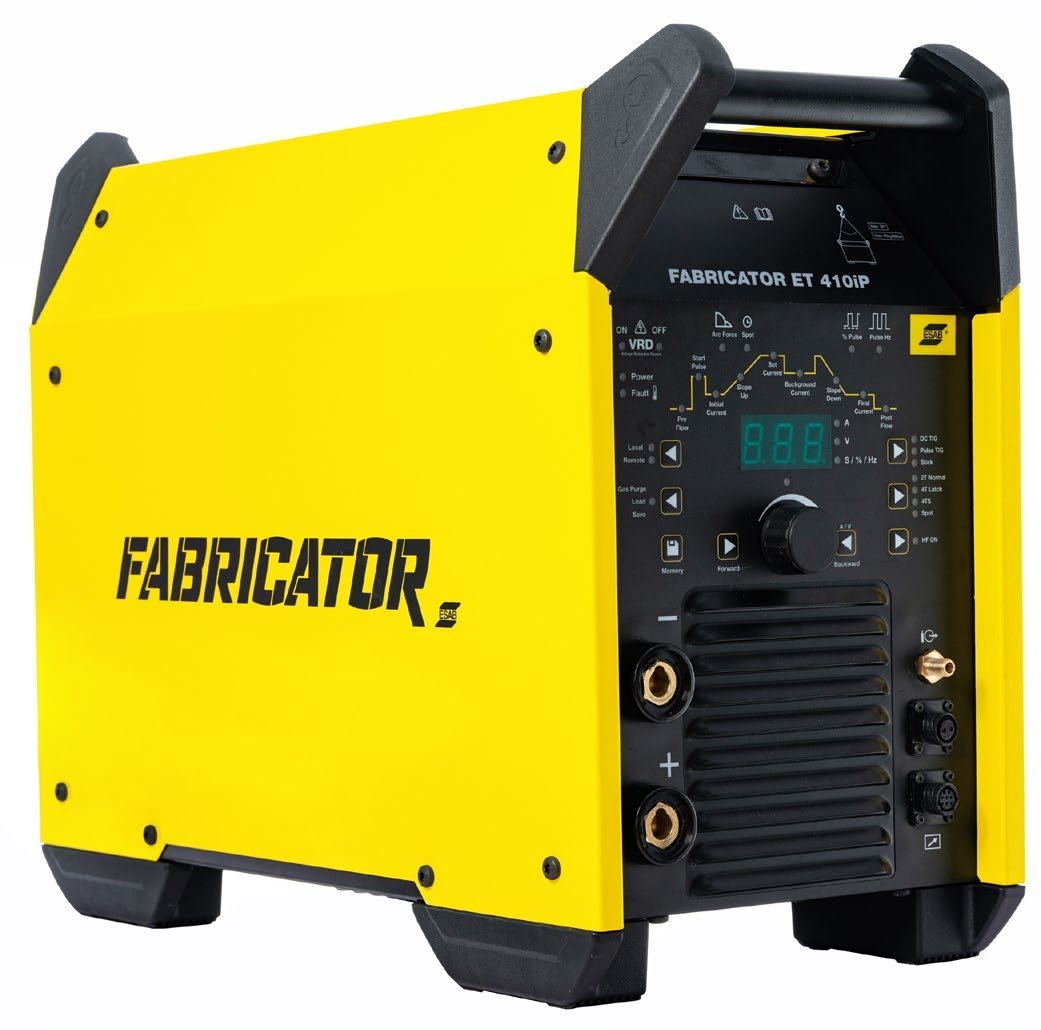

  • ESAB Fabricator ET 410iP heavy-duty TIG welding inverter, yellow and black, showing the control panel and welding terminals

    ESAB Fabricator ET 410iP

    The ESAB Fabricator ET 410iP is a heavy-duty inverter-controlled power source for HF TIG pulse and MMA welding, rated 410 A at 60% duty cycle and 310 A at 100% at 40 °C, with pulse frequency from 0.5 to 250 Hz, Start Pulse tungsten preheat, spot mode and a wide 380–440 V mains tolerance.

    Mains voltage (welding input)
    380–440 V 3ph
    Maximum open circuit voltage
    VRD 13.5 V
    Welding output at 40 °C
    410 A @ 60%

    Part no. 0447101881

    Specifications & part numbers

Stick Welding (SMAW / MMA)

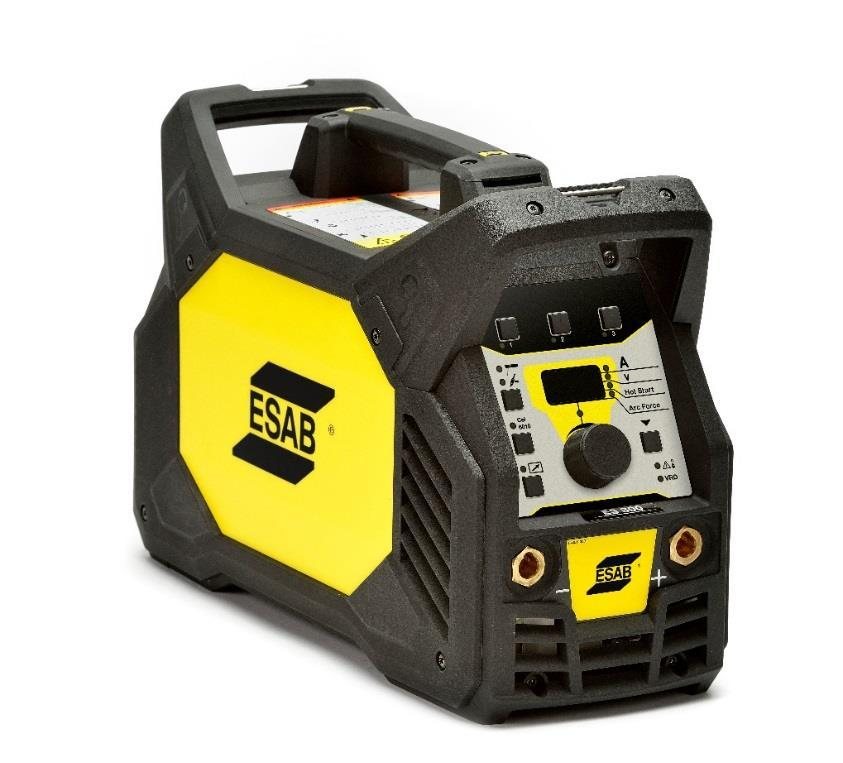

  • ESAB Renegade ES 300i stick welding machine, front three-quarter view showing the light-background control panel with hot start and arc force controls and two OKC 50 welding terminals

    ESAB Renegade ES 300i

    The ESAB Renegade ES 300i is a 300 A inverter-based MMA (stick) and Live TIG welding machine weighing 15 kg, with an automatic input voltage sensor that accepts any supply between 230 V and 480 V three-phase, delivering 300 A at 32.0 V on a 40% duty cycle and 200 A continuously at 100%.

    Primary voltage, 3 ph
    230–480 V
    Maximum output
    300 A
    MMA welding output
    300 A @ 40%

    Part no. 0445100880

    Specifications & part numbers

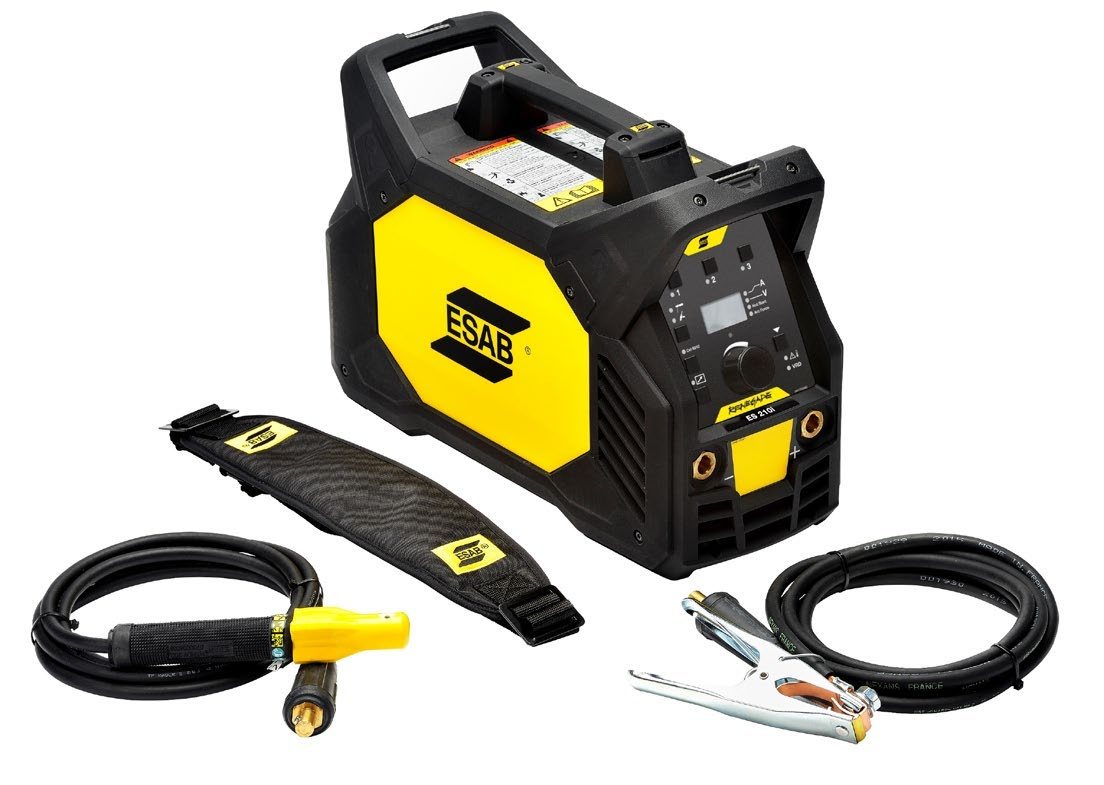

  • ESAB Renegade ES 210i stick welding machine with shoulder strap, work lead and Handy 200 electrode holder as supplied

    ESAB Renegade ES 210i

    The ESAB Renegade ES 210i is a professional single-phase MMA (stick) and Live TIG welding machine running on 115 or 230 VAC, delivering 180 A at 27.2 V on a 25% duty cycle at 230 V, with an IP23 housing, active PFC for extension cables up to 100 m, and the arc characteristics to run 6010 cellulosic electrodes.

    Mains voltage
    115/230 V 1ph
    At 230 VAC
    180 A @ 25%
    At 230 VAC
    210 A TIG

    Part no. 0447700881

    Specifications & part numbers

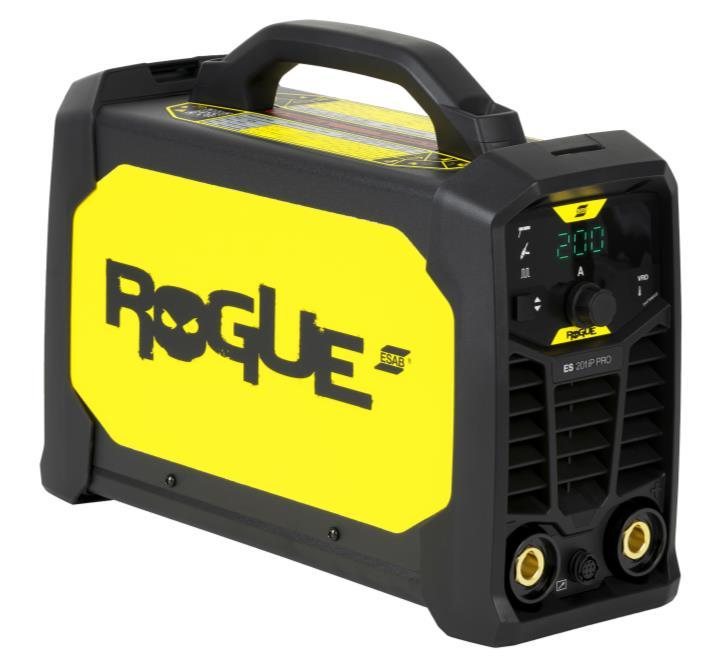

  • ESAB Rogue ES 201iP PRO portable stick welding machine with carrying handle and welding terminals

    ESAB Rogue ES 201iP PRO

    The ESAB Rogue ES 201iP PRO is a 200 A MMA (stick) welding inverter with Pulse MMA and Live TIG capability, weighing 8.4 kg, running on 120 or 230 V single-phase power, taking electrodes up to 4.0 mm, with digital arc control and an IP23S housing.

    Primary voltage, 1 ph
    120/230 V 1ph
    Maximum output
    200 A
    MMA welding output
    200 A @ 25%

    Part no. 0705002009

    Specifications & part numbers

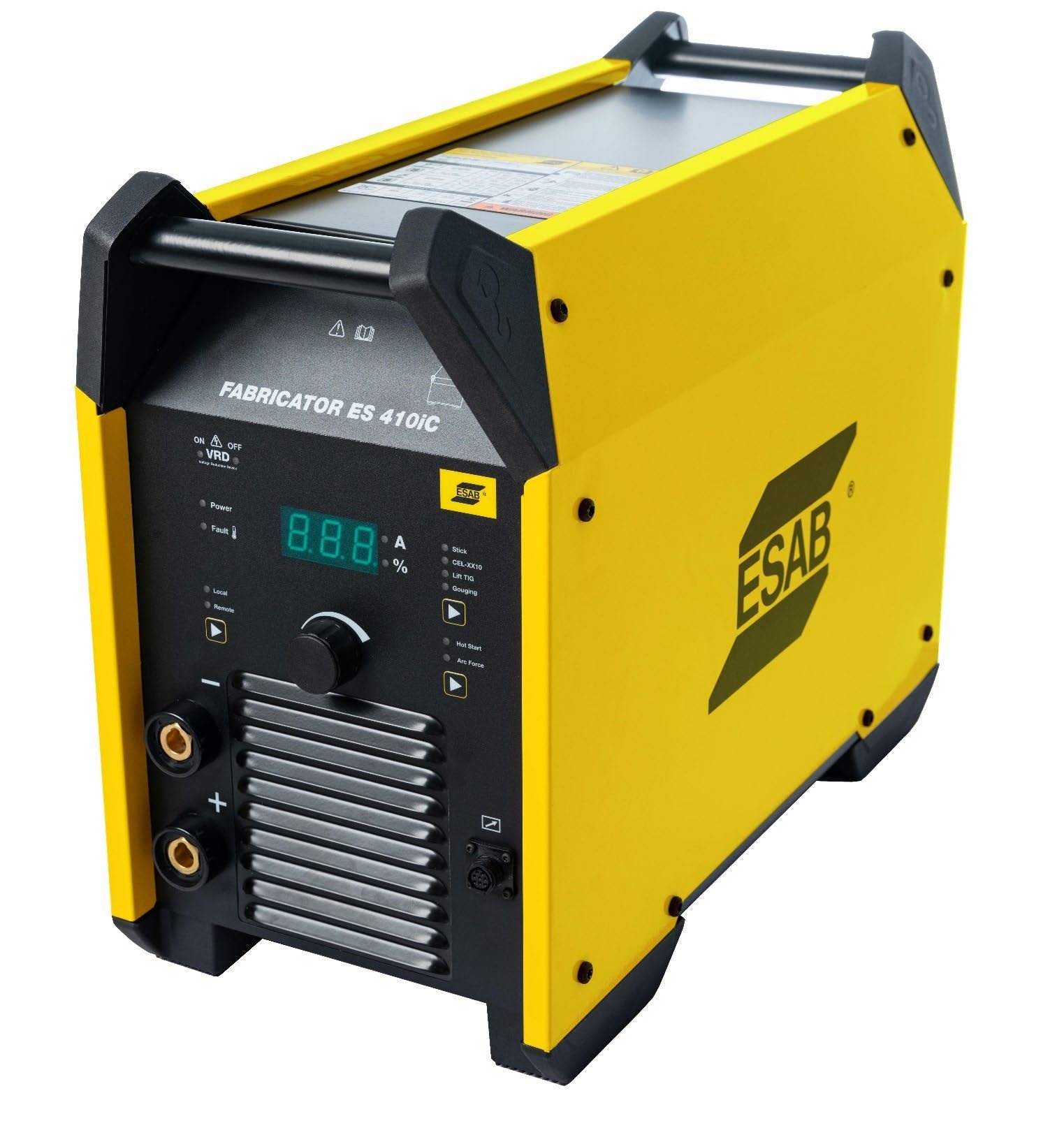

  • ESAB Fabricator ES 410iC heavy-duty stick welding inverter with digital display and OKC welding terminals

    ESAB Fabricator ES 410iC

    The ESAB Fabricator ES 410iC is a heavy-duty inverter-controlled power source for MMA (stick) welding, Live TIG and CC carbon-arc gouging, rated 400 A at 60% duty cycle and 310 A at 100% at 40 °C, with hot start, arc force and anti-stick, and performance with all electrode types including cellulosic.

    Mains voltage (welding input)
    380–440 V 3ph
    Maximum open circuit voltage
    VRD 13.5 V
    Welding output at 40 °C
    400 A @ 60%

    Part no. 0447100881

    Specifications & part numbers

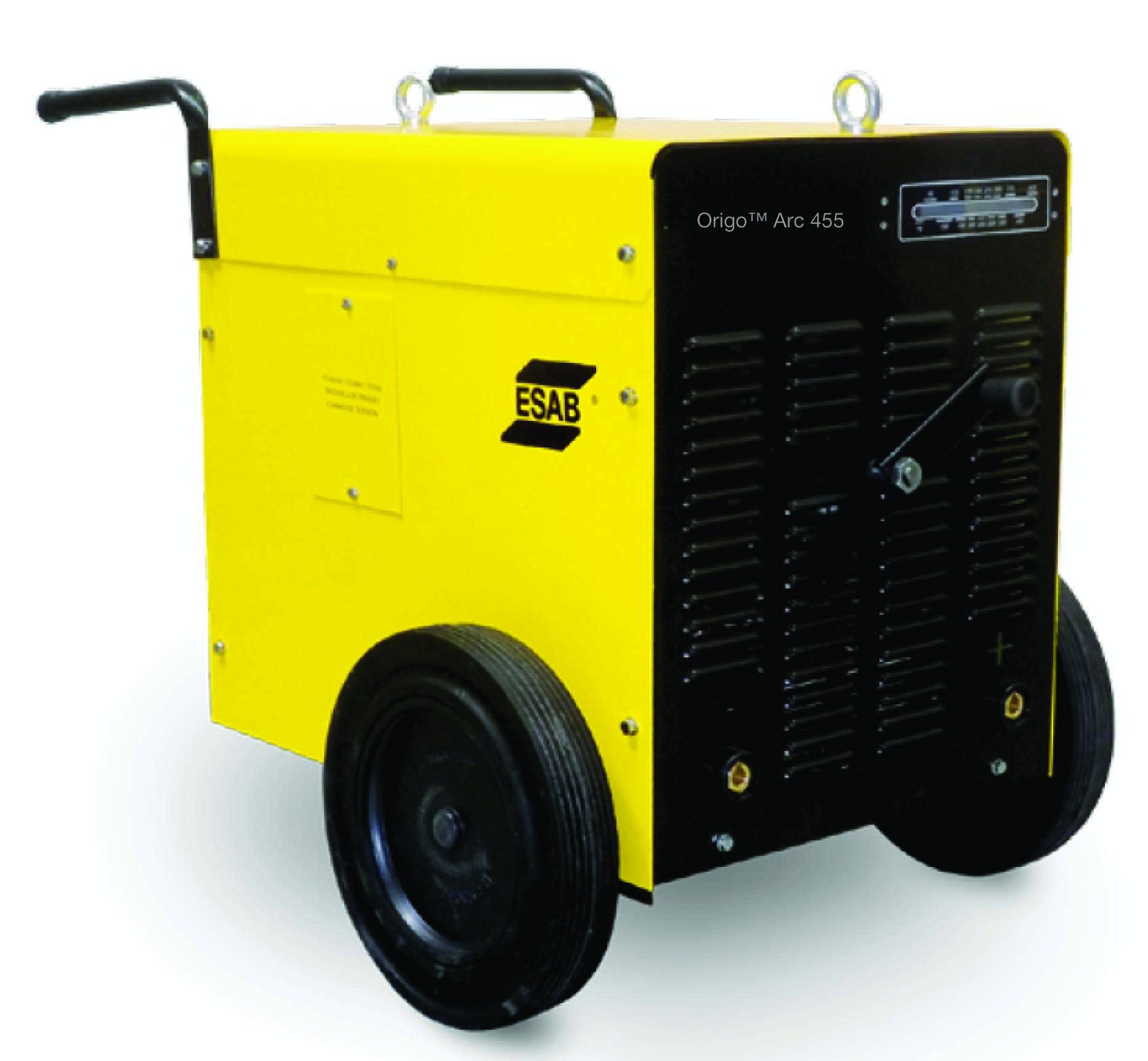

  • ESAB Origo Arc 455 welding rectifier on a two-wheel trolley with lifting eye and front panel current crank

    ESAB Origo Arc 455

    The ESAB Origo Arc 455 is an industrial direct-current welding rectifier for manual metal arc welding with a wide range of coated electrodes, delivering 400 A at 36 V on a 35% duty cycle and 230 A at 30 V continuously from a 380 V 50 Hz three-phase supply, with a 79–80 V open circuit voltage for easy striking.

    Current range
    65–450 A
    Duty cycle
    450 A @ 30%
    Current range
    400 A @ 50 Hz

    Part no. 0700500068

    Specifications & part numbers

Plasma Cutting

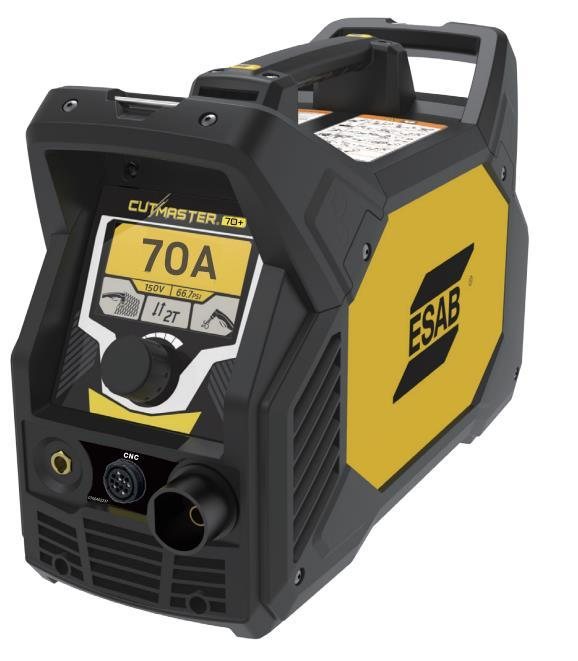

  • ESAB Cutmaster 70+ portable plasma cutter with carrying handles and a TFT display reading 70A

    ESAB Cutmaster 70+

    The ESAB Cutmaster 70+ is a portable 70 A air plasma cutting package with a 30 mm cut capacity, 20 mm pierce capacity and 38 mm maximum severance, running on 400 V three-phase power at a 50% duty cycle at 70 A, supplied with the SL60 1Torch and a 10.9 cm TFT LCD display.

    Amperage output
    15–70 A
    Pierce capacity
    20 mm pierce
    Cut capacity
    30 mm cut

    Part no. 0559170004

    Specifications & part numbers

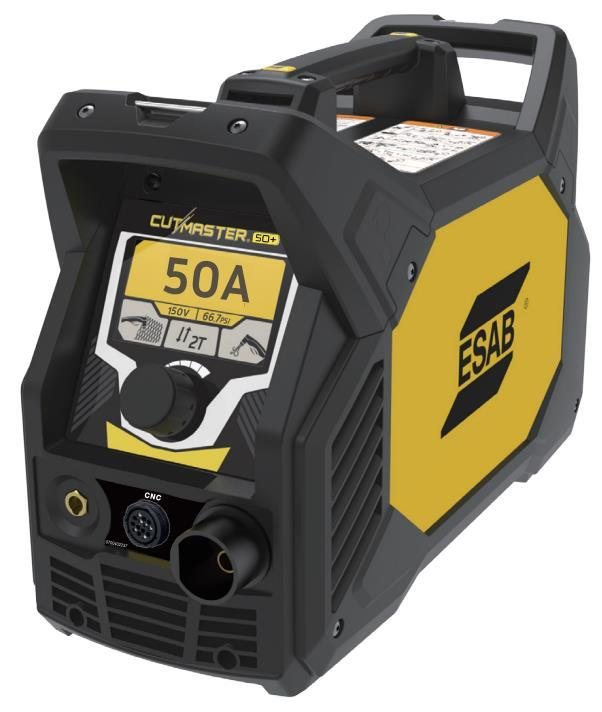

  • ESAB Cutmaster 50+ portable plasma cutter with carrying handles and a TFT display reading 50A

    ESAB Cutmaster 50+

    The ESAB Cutmaster 50+ is a portable 50 A air plasma cutting package with a 25 mm cut capacity, 16 mm pierce capacity and 32 mm maximum severance, running on 400 V three-phase power at a 60% duty cycle at 50 A, supplied with the SL60 1Torch and a 10.9 cm TFT LCD display.

    Amperage output
    15–50 A
    Pierce capacity
    16 mm pierce
    Cut capacity
    25 mm cut

    Part no. 0559150004

    Specifications & part numbers

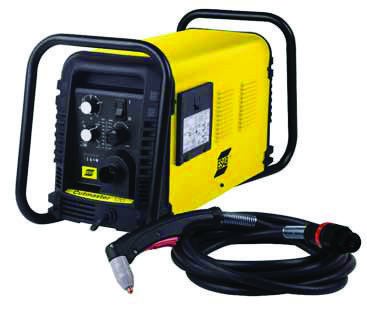

  • ESAB Cutmaster 120 heavy industrial plasma cutter with True-Guard roll bar and SL100 1Torch and leads coiled in front

    ESAB Cutmaster 120

    The ESAB Cutmaster 120 is a heavy industrial air plasma cutting system supplied with the SL100 1Torch, rated 120 A for a 40 mm recommended cut, 55 mm maximum cut and 25 mm pierce rating, running on a 400 V three-phase supply at a 40% duty cycle at 120 A.

    Recommended cut
    40 mm
    Maximum cut
    55 mm max
    Pierce rating
    25 mm pierce

    Part no. 0559119304

    Specifications & part numbers

Weld Data Monitoring & Quality Assurance

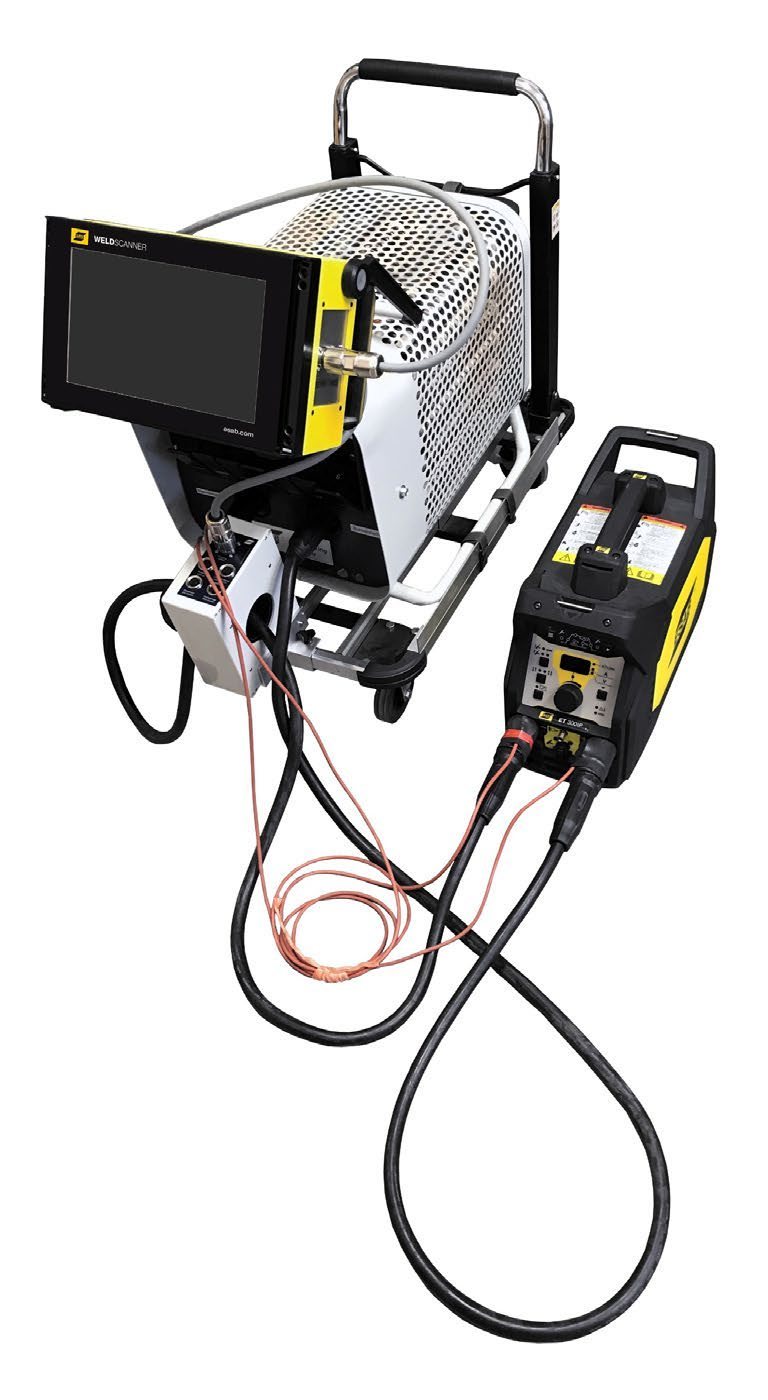

  • ESAB WeldScanner Validator measuring unit with touch screen display, shown with process sensor and connection cables

    ESAB WeldScanner Validator

    The ESAB WeldScanner Validator is a portable validation and calibration instrument that validates all brands of arc welding equipment to IEC 60974-14, measuring welding current, voltage, wire feed speed and optionally gas flow rate and travel speed, and issuing validation certificates as PDF.

    Standard
    IEC 60974-14
    Processes
    GMAW/GTAW/SMAW/SAW
    High frequency
    HF proof

    Part no. HKS0002805

    Specifications & part numbers

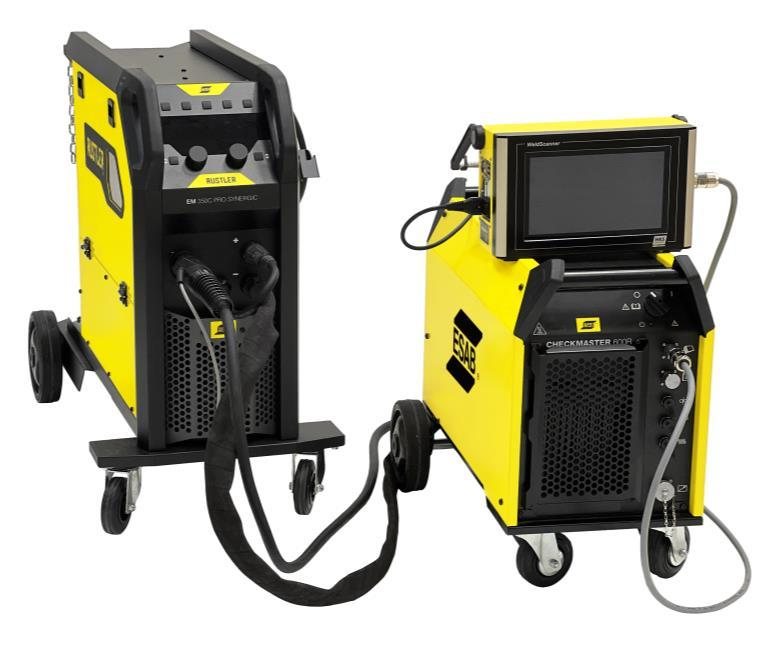

  • ESAB Checkmaster 600R resistive load bank on a wheel kit beside an ESAB Rustler welding power source, connected for calibration

    ESAB Checkmaster 600R Resistive Load

    The ESAB Checkmaster 600R is a resistive load bank that simulates an arc for the calibration, validation and function testing of welding power sources from 150 A to 500 A, delivering 0–600 A DC and 0–40 V with automated load switching, compliant with IEC 60974-14 and ISO 17662.

    Mains voltage
    100–230 VAC
    Welding output
    600 A @ 30%
    Load range
    12–600 A

    Part no. HKS0020011

    Specifications & part numbers

NDT & Inspection Equipment

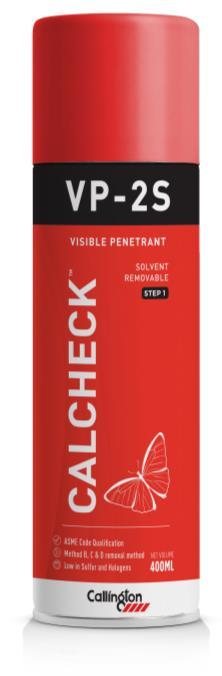

  • Callington CalCheck VP-2S aerosol can, red, labelled Visible Penetrant, Solvent Removable, Step 1, 400 ml

    Callington CalCheck VP-2S Visible Penetrant

    Callington CalCheck VP-2S is a solvent removable visible red dye penetrant for locating surface-breaking defects in ferrous and non-ferrous metals, ceramics and glass, supplied in a 400 ml aerosol and compliant with ASME BPVC Section V, ASTM E165 and AMS 2644.

    Colour
    Red dye
    Flash point
    104 °C
    ASME BPVC Section V
    ASME V

    Part no. 1561/400

    Specifications & part numbers

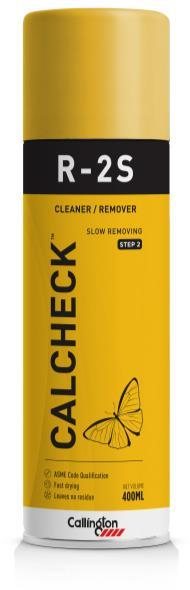

  • Callington CalCheck R-2S aerosol can, yellow, labelled Cleaner / Remover, Slow Removing, Step 2, 400 ml

    Callington CalCheck R-2S Cleaner / Remover

    Callington CalCheck R-2S is a non-halogenated cleaner and penetrant remover used to prepare the test surface before dye penetrant inspection and to remove excess penetrant afterwards, supplied in a 400 ml aerosol and compliant with ASME BPVC Section V, ASTM E165 and AMS 2644.

    Colour
    Colourless
    Flash point
    6 °C
    ASME BPVC Section V
    ASME V

    Part no. 1563/400

    Specifications & part numbers

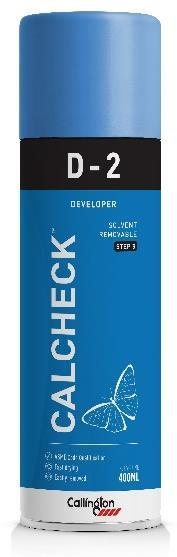

  • Callington CalCheck D-2 aerosol can, blue, labelled Developer, Solvent Removable, Step 3, 400 ml

    Callington CalCheck D-2 White Developer

    Callington CalCheck D-2 is a solvent based white developer that draws trapped penetrant out of surface-breaking defects and provides the white background against which indications are read, supplied in a 400 ml aerosol and compliant with ASME BPVC Section V, ASTM E165 and AMS 2644.

    Colour
    White
    Flash point
    6 °C
    ASME BPVC Section V
    ASME V

    Part no. 1562/400

    Specifications & part numbers

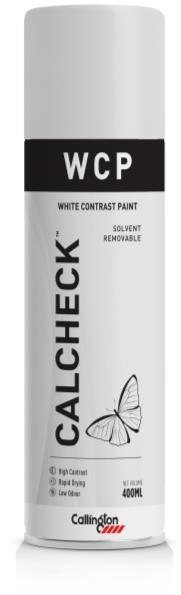

  • Callington CalCheck WCP aerosol can, white, labelled White Contrast Paint, Solvent Removable, 400 ml

    Callington CalCheck WCP White Contrast Paint

    Callington CalCheck WCP is a fast drying, low odour white contrast paint that provides a high-contrast background for interpreting magnetic particle inspection results under visible light, supplied in aerosol form and compliant with ASME BPVC Section V, ASTM E709, ASTM E3024 and ISO 9934-2.

    Colour
    White
    Temperature limit
    4–50 °C
    ASME Boiler and Pressure Vessel Code Section V
    ASME V

    Part no. 1568/400

    Specifications & part numbers

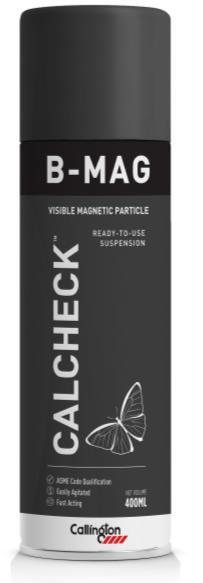

  • Callington CalCheck B-MAG aerosol can, labelled Black Oxide Magnetic Particle Oil Dispersion

    Callington CalCheck B-MAG Black Magnetic Particle

    Callington CalCheck B-MAG is a black oxide magnetic particle oil dispersion for visible-light magnetic particle inspection, with 0.5–4.0 µm particles in a refined light petroleum distillate, achieving SAE sensitivity of 6 holes and compliant with ASME BPVC Section V, ASTM E709 and ISO 9934-2.

    Colour
    Black
    Particle size
    0.5–4.0 µm
    SAE sensitivity
    SAE 6 holes

    Part no. 1567/400

    Specifications & part numbers

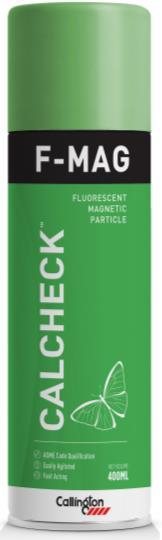

  • Callington CalCheck F-MAG aerosol can, labelled Fluorescent Magnetic Particle

    Callington CalCheck F-MAG Fluorescent Magnetic Particle

    Callington CalCheck F-MAG is a fluorescent magnetic particle suspension that produces yellow-green indications under ultraviolet light, with 2.0–5.0 µm particles in a refined light petroleum distillate, achieving SAE sensitivity of 7 holes and compliant with ASTM E1444, ASTM E709, AMS 2641 and ISO 9934-2.

    Colour
    Brown
    Fluorescence
    Yellow-green UV
    Particle size
    2.0–5.0 µm

    Part no. 1566/400

    Specifications & part numbers

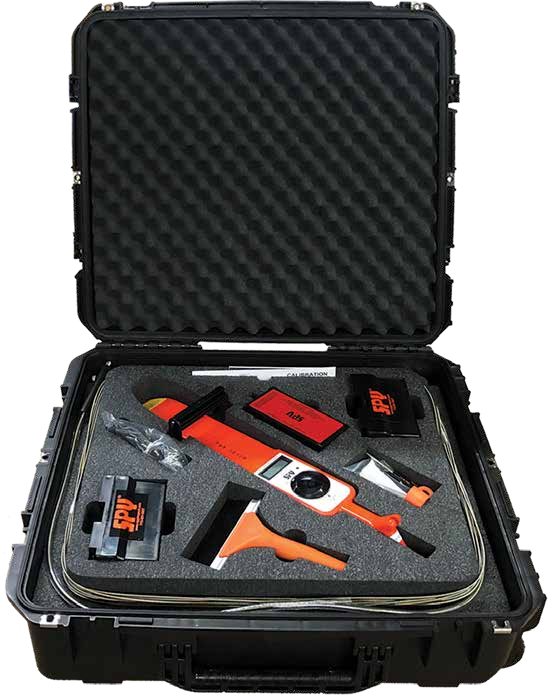

  • SPY portable holiday detector in its fitted transport case with electrode accessories, spare battery and charger

    SPY Portable Holiday Detectors 780, 785 & 790

    SPY portable holiday detectors are pipeline and tank coating inspection instruments in three models — the 780 at 1–5 kV DC, the 785 at 1–15 kV pulse DC and the 790 at 5–35 kV pulse DC — with infinitely adjustable auto-regulated voltage, a built-in voltmeter, and compliance with NACE, ASTM and AWWA coating inspection standards.

    Model 780 — thin film coatings
    780: 1–5 kV DC
    Model 785 — general purpose
    785: 1–15 kV
    Model 790 — thick coatings
    790: 5–35 kV

    Part no. 785

    Specifications & part numbers
  • SPY Jeepmeter high voltage meters shown side by side with extendable feet

    SPY Jeepmeters JM, PJM & DCPJM

    SPY Jeepmeters are high-voltage meters that verify the actual output of a holiday detector, in three models — the digital JM measuring pulse DC to 35 kV and DC to 7 kV, and the analogue pocket PJM (pulse DC, 1–20 kV) and DCPJM (DC, 1–5 kV).

    Measurement type
    DC + pulse DC
    Voltage range — pulse DC
    35 kV pulse
    Voltage range
    PJM: 1–20 kV

    Part no. JM

    Specifications & part numbers

Welding Consumables

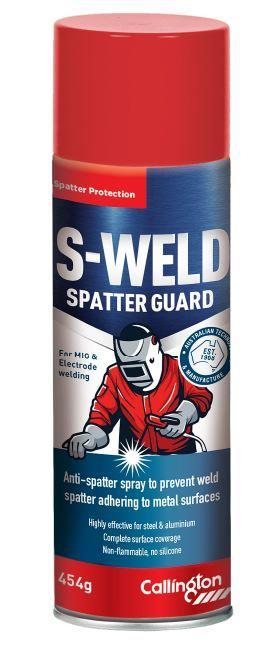

  • Callington S-Weld Spatter Guard aerosol can, 454 g, showing a welder illustration and the claims non-flammable, no silicone, for MIG and electrode welding

    Callington S-Weld Spatter Guard

    Callington S-Weld Spatter Guard is a non-flammable, silicone-free anti-spatter aerosol that prevents weld spatter adhering to base metal and MIG torch components, supplied in a 454 g can packed 12 per carton, and formulated to remain paintable without causing coating defects.

    Flammability
    Non-flammable
    Silicone content
    Silicone free
    Can size
    454 g

    Part no. 1450/454

    Specifications & part numbers

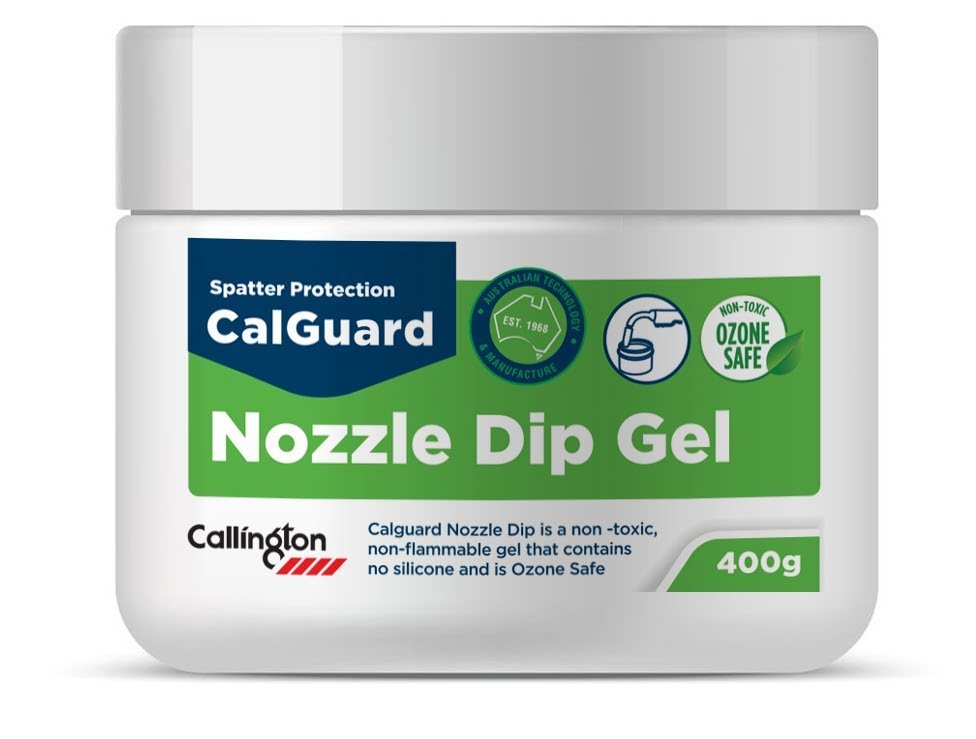

  • Callington CalGuard Nozzle Dip Gel 400 g tub, green and blue label reading Spatter Protection, non-toxic, non-flammable, no silicone and Ozone Safe

    Callington CalGuard Nozzle Dip Gel

    Callington CalGuard Nozzle Dip Gel is a non-toxic, silicone-free blue gel that welding torch nozzles are dipped into while hot, preventing spatter adhering to MIG nozzles, contact tips, positioners and fixtures, supplied in a 400 g container packed 12 per carton.

    Appearance
    Blue gel
    Flash point
    >220 °C
    Silicone content
    Silicone free

    Part no. 1460/400

    Specifications & part numbers

Weld Cleaning, Pickling & Passivation

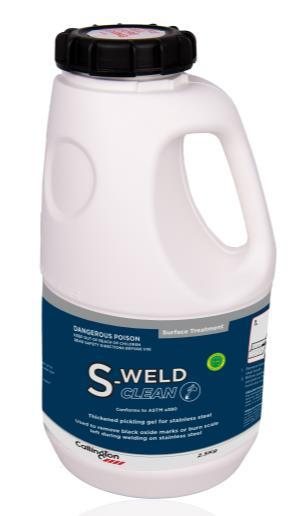

  • Callington S-Weld Clean 2.5 kg container with black security cap, labelled thickened pickling gel for stainless steel and Dangerous Poison

    Callington S-Weld Clean Pickling Gel

    Callington S-Weld Clean is a high-adhesion thickened pickling gel that removes black oxide scale, heat tint and weld discolouration from stainless steel, duplex and Inconel alloys, conforming to ASTM A380 and supplied in 1 kg, 2.5 kg and 23 kg packs complete with an acid-resistant application brush.

    200, 300, 400 series stainless
    5–30 min
    pH (as supplied)
    pH <1.0
    ASTM A380
    ASTM A380

    Part no. 1100/30

    Specifications & part numbers

Cutting, Grinding & Finishing Abrasives

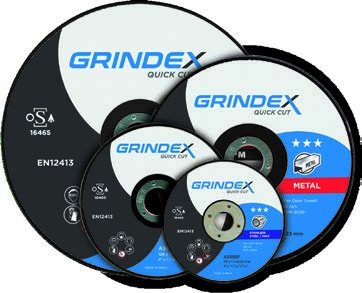

  • Grindex cutting discs fanned out showing several diameters with blue and black labels

    Grindex Cutting Discs

    Grindex cutting discs are bonded abrasive wheels for cutting metal and stainless steel, available 100–230 mm in 3 mm depressed-centre form for angle grinders and 300–400 mm in 3 mm flat form for chopsaw machines, manufactured to EN 12413 and OSA certified.

    100 × 3 × 16 mm (4 × 1/8 × 5/8″)
    100–230 mm
    300 × 3 × 25.4 mm (12 × 1/8 × 1″)
    300–400 mm
    Maximum operating speed
    80 m/s

    Part no. 66252850694

    Specifications & part numbers

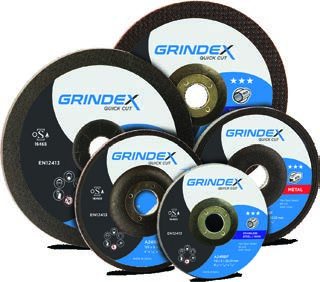

  • Grindex Type 27 depressed centre grinding discs shown in a range of diameters

    Grindex Grinding Discs

    Grindex grinding discs are 6 mm Type 27 depressed-centre bonded abrasive wheels for portable weld grinding and notching, available 100–230 mm in separate formulations for metal, for stainless steel and INOX, and in a fine-back version for both.

    100 × 6 × 16 mm (4 × 1/4 × 5/8″)
    100–230 mm
    Sizes available
    Stainless range
    Sizes available
    Fine back

    Part no. 66252850706

    Specifications & part numbers

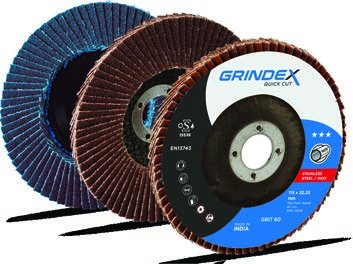

  • Grindex flap discs showing overlapping abrasive flaps in several grits and diameters

    Grindex Flap Discs

    Grindex flap discs are overlapping-abrasive discs in Type 27 and Type 29 forms, in aluminium oxide and zirconia, from 100 mm to 178 mm in grits 36, 60, 80 and 120, used for light stock removal, blending and finishing on metal and stainless steel in a single operation.

    Types
    T27 & T29
    Abrasive
    Alu-ox / zirconia
    Diameters
    100–178 mm

    Part no. Type 27/29 100-178mm

    Specifications & part numbers

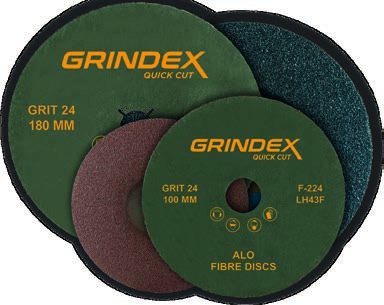

  • Grindex coated fibre discs labelled grit 24, 180 mm, on vulcanised fibre backing

    Grindex Coated Fibre Discs

    Grindex coated fibre discs are resin-bonded abrasive discs on a heavy-duty vulcanised fibre backing, available in zirconia, aluminium oxide and silicon carbide from 100 mm to 178 mm in grits 24, 36, 60, 80 and 120, designed for a consistent cut rate and uniform finish throughout their working life.

    Diameters and grits
    100–178 mm
    Abrasive types
    3 abrasives
    Grit range
    Grit 24–120

    Part no. Fibre 100-178mm

    Specifications & part numbers

Electrode Ovens & Accessories

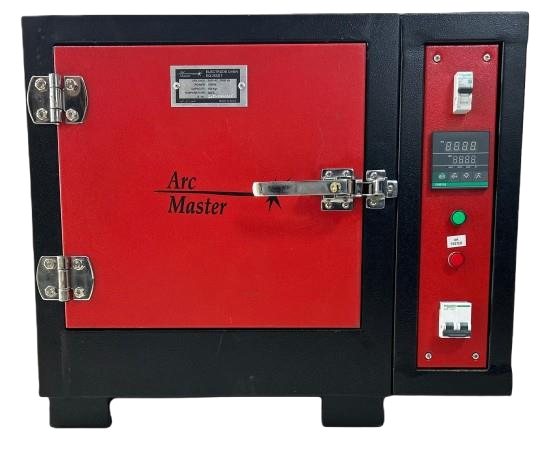

  • Arc-Master cabinet electrode oven with a red hinged door, digital temperature controller and clamp latches

    Arc-Master Electrode Ovens

    Arc-Master electrode ovens are welding rod drying and holding ovens in six models, from a 5 kg portable quiver rated to 150 °C up to a 200 kg floor-standing oven rated to 500 °C with digital temperature control, all built in powder-coated pre-galvanized steel with mica band heating elements and ceramic wool insulation.

    EL-OV-10Si — portable quiver
    5 kg / 150 °C
    EL-OV-20Si — portable quiver
    9 kg / 150 °C
    EL-OV-110Si — shop oven
    50 kg / 300 °C

    Part no. EL-OV-10Si

    Specifications & part numbers

Looking for something not listed yet?

We supply the full ESAB range, the Callington CalCheck and spatter protection ranges, plus welding consumables, electrode ovens and inspection equipment. Tell us the process, material and thickness and we will specify it and quote.

Send an enquiry Email us
