ESAB · Stick Welding (SMAW / MMA)
The ESAB Renegade ES 300i is a 300 A inverter-based MMA (stick) and Live TIG welding machine weighing 15 kg, with an automatic input voltage sensor that accepts any supply between 230 V and 480 V three-phase, delivering 300 A at 32.0 V on a 40% duty cycle and 200 A continuously at 100%.
Price on request. POFIS is an ESAB Authorized Distributor & Service Centre in Abu Dhabi — quotations include confirmed lead time and delivery terms.
Where it is used
Features
A 300 A machine in a 15 kg, 460 × 200 × 320 mm package, in a rugged composite casing built for the roughest environments. Where a welder has to carry the machine to the joint rather than drag cable to it, the weight is the specification that matters most.
The machine detects the supply and operates on any input voltage between 230 V and 480 V three-phase, and on 230 V single phase. One machine therefore works across sites, countries and generators without a changeover switch or a configuration step that can be got wrong.
Professional MMA welding with electrodes up to 6 mm at a high duty cycle of 300 A at 40%, explicitly rated by ESAB as ideal for operation in high ambient temperatures — the relevant qualification for UAE and GCC site work.
A powerful voltage booster provides additional arc voltage for superior cellulosic weld performance. Cellulosic electrodes (such as E6010 and E7010 used in pipeline root runs) need a high and responsive arc voltage that lighter inverters struggle to hold.
The machine automatically adjusts to optimal start and stop parameters based on the set welding current, so arc starts stay consistent across the current range without the operator tuning hot start and arc force by hand.
Open circuit voltage is 48 V, reduced to 32 V with VRD for environments with increased electrical hazard (application class S). Energy save mode draws 91 W, with a 0.96 power factor and 89% efficiency at maximum MMA current.

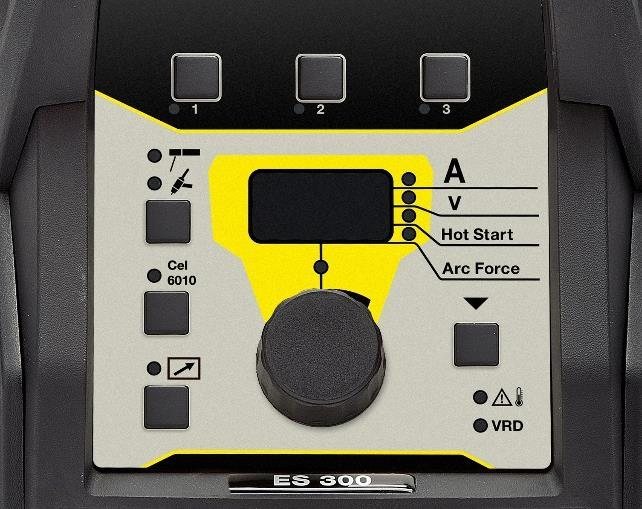

The control panel uses a light background that stays readable in dark environments — inside a vessel, a tank or a hull section, where a backlit dark panel washes out under a welding helmet.
Technical data
Published manufacturer specifications. Where a figure affects your welding procedure, confirm it against the instruction manual for your specific configuration.
| Primary voltage, 1 ph | 230 VAC ±10%, 50/60 Hz |
|---|---|
| Primary voltage, 3 ph | 230–480 VAC ±10%, 50/60 Hz |
| Fuse, slow | 10 A (20 A at 230 V) |
| Rated kVA | 11.3 kVA |
| Energy save mode | 91 W |
| Power factor at max current | 0.96 |
| Efficiency at max current, MMA / TIG | 89% / 85% |
| Open circuit voltage | 48 V |
| Open circuit voltage, VRD | 32 V |
| Mains cable | 3 m, 4 × 2.5 mm² (4 × 4 mm² with 230 V) |
| Supply plug | CEE 16 A |
| Maximum output | 300 A |
|---|---|
| MMA welding output | 300 A / 32.0 V at 40% duty cycle; 250 A / 30.0 V at 60%; 200 A / 28.0 V at 100% |
| TIG welding output | 300 A / 22.0 V at 60% duty cycle; 250 A / 20.0 V at 100% |
| Current range | 5–300 A |
| Dimensions (L × W × H) | 460 × 200 × 320 mm |
|---|---|
| Weight | 15 kg |
| Approvals / application class / protection class | CE / S / IP23 |
Ordering information
Quote these part numbers on your enquiry or LPO to guarantee the exact configuration. If you are unsure which variant suits your application, send us the joint details and we will specify it.
| Description | Part number |
|---|---|
| Renegade ES 300i, incl. 3 m mains cable and plug | 0445100880 |
| Renegade ES 300i, incl. 3 m mains, shoulder strap, 5 m weld and return cable | 0445250880 |
| Description | Part number |
|---|---|
| Shoulder strap | 0445197880 |
| Electrode holder kit, Handy 300, OKC 50, 3 m | 0700006902 |
| Electrode holder kit, Handy 300, OKC 50, 5 m | 0700006888 |
| Return cable kit, OKC 50, 3 m | 0700006903 |
| Return cable kit, OKC 50, 5 m | 0700006889 |
| OKC 50 male contact, pack of 4 | 0160360881 |
| MMA 3 analogue remote control, incl. 10 m cable and 6-pin connector | 0445870880 |
| MMA 3 analogue remote control, incl. 25 m cable and 6-pin connector | 0445870881 |
| 10 m replacement cable for MMA 3 analogue remote control | 0445204880 |
| 25 m replacement cable for MMA 3 analogue remote control | 0445204881 |
| Retrofit kit for MMA 3 analogue remote control | 0445840880 |
| ER 1 remote control, incl. 5 m cable and 6-pin connector | 0445536881 |
| ER 1 remote control, incl. 10 m cable and 6-pin connector | 0445536882 |
| ER 1 remote control, incl. 25 m cable and 6-pin connector | 0445536883 |
| ER 1 remote control, incl. 5 m cable and 4-pin connector The 4-pin connector is used for Renegade ES 300i machines with serial numbers up to 718-xxx-xxx. | 0445536880 |
| 5 m replacement cable with 4-pin connector for ER 1 remote control | 0445450880 |
| 1 to 3-phase adapter, Renegade Only for use with Renegade ES 300i (0445100880), ET 300i (0445100900) and ET 300iP (0445100920). | 0445139880 |
Downloads
Need the instruction manual or spare parts list for this machine? Request it from weldiv@pofis.ae and we will send the current revision.
Frequently asked
It has an automatic input voltage sensor and operates on any three-phase supply between 230 V and 480 V ±10% at 50/60 Hz, and on 230 V single phase ±10%. No manual changeover is needed.
In MMA it delivers 300 A at 32.0 V on a 40% duty cycle, 250 A at 60% and 200 A continuously at 100%. In TIG it gives 300 A at 22.0 V at 60% and 250 A at 100%.
Up to 6 mm, for professional MMA welding. The current range is 5–300 A, and the machine automatically sets optimal start and stop parameters for the selected current.
Yes. It has a powerful voltage booster that supplies the additional arc voltage cellulosic electrodes require, which ESAB specifies as giving superior cellulosic weld performance. This is the relevant capability for pipeline root runs with E6010 and E7010 class electrodes.
15 kg, in a rugged composite casing measuring 460 × 200 × 320 mm. An optional shoulder strap (0445197880) is available, and a package including the strap and 5 m weld and return cables is sold as 0445250880.
Yes. Open circuit voltage is 48 V, reduced to 32 V with VRD activated. The machine is application class S, for use in environments with increased electrical hazard.
It supports Live TIG, rated 300 A at 22.0 V on a 60% duty cycle. For full-featured TIG including AC for aluminium, a dedicated AC/DC machine such as the Rogue ET 230iP AC/DC is the correct choice.
POFIS is an ESAB Authorized Distributor and Service Centre in Abu Dhabi supplying the UAE and GCC. Request a quote on this page or email weldiv@pofis.ae for price, lead time and delivery terms.
Procurement & supply
The ESAB Renegade ES 300i is supplied from Abu Dhabi by Perfect Oilfield & Industrial Supply LLC as an ESAB Authorized Distributor and Service Centre. The information below covers what procurement and QA/QC departments normally need before raising a purchase order.
Stock items dispatch from Abu Dhabi within 24–48 hours. Indent items are quoted with a confirmed lead time at the time of offer.
POFIS is an approved ADNOC vendor and is listed on the approved vendor lists (AVL) of major operators and EPC contractors across the GCC. We can complete supplier registration and prequalification documentation on request.
Standard credit terms are available to registered corporate accounts. LPO, LC and advance payment are all accepted.
Delivery across the UAE and the wider GCC. Quotations can be issued on EXW, FOB, CIF or DDP terms to suit your project.
Full manufacturer warranty, honoured locally. As an ESAB Authorized Service Centre we carry out warranty work and repairs in Abu Dhabi rather than returning equipment abroad.
In-UAE service, commissioning, operator training and spare parts backing for every machine we supply.
