ESAB · MIG/MAG & Flux-Cored Welding (GMAW / FCAW)

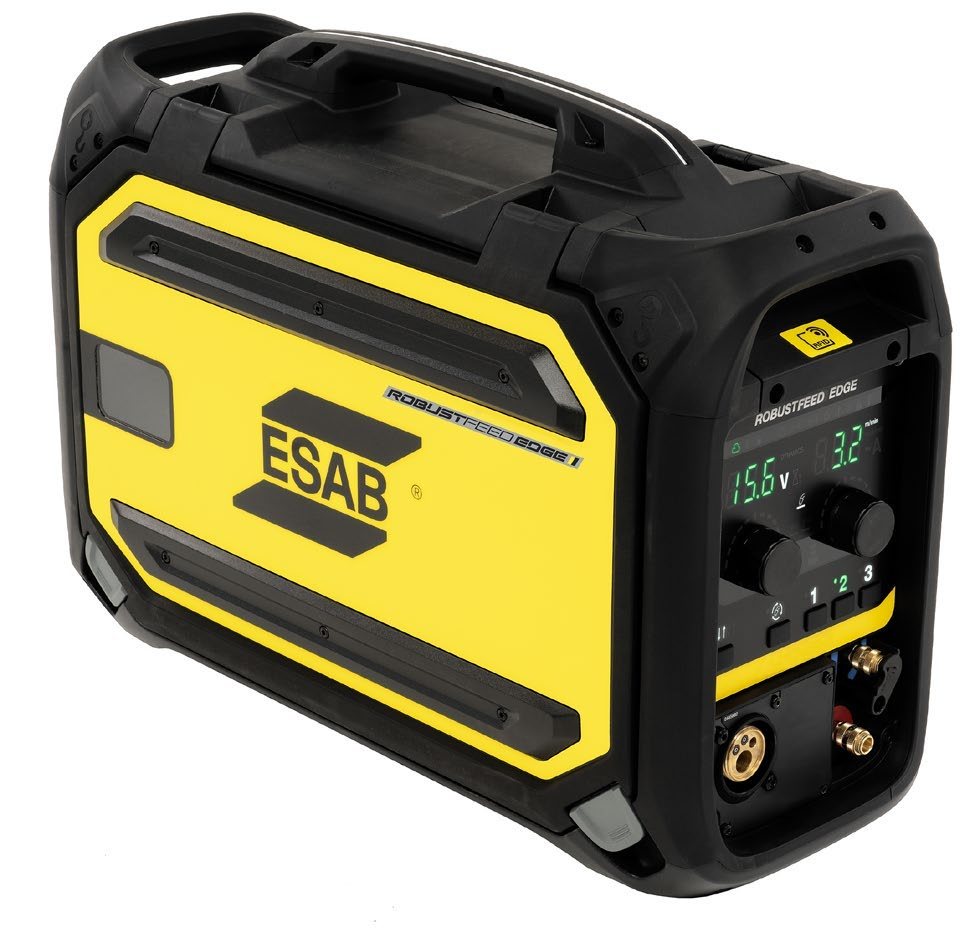

The ESAB RobustFeed Edge is a water-cooled multi-process MIG wire feeder for heavy industrial welding, rated 500 A at 60% duty cycle and 400 A at 100%, with IP54 SpoolSafe protection, PreciDrive wire feed, RFID operator lockout and a 20 kg spool capacity, in BX and CX variants.
Price on request. POFIS is an ESAB Authorized Distributor & Service Centre in Abu Dhabi — quotations include confirmed lead time and delivery terms.
Where it is used
Features
The whole feeder is rated IP54, which ESAB describe as unique in the market for a wire feeder. It protects against dirt and dust, keeps the wire dry and clean, improves feedability and reduces the risk of weld contamination. Wire that has sat in a humid, dusty compartment is a porosity source that no amount of operator skill corrects.
The PreciDrive wire drive system maintains precision wire feeding performance to promote consistent weld quality. Feed instability is a common root cause of porosity and inconsistent bead profile, and it is addressed in the drive rather than in technique.
A key card operator management system that is quick to set up, allowing quick-jobs to be locked down with setting limits. This enforces adherence to the welding procedure specification instead of relying on the operator to respect it — which is what a QA department actually wants from a feeder.
TrueFlow manages shielding gas both at arc starts and during welding, improving quality at starts and decreasing consumption. Gas is a consumable that is rarely metered and often significant, and start-of-arc surge is where much of it is wasted.
Material selection and configuration sit on a TFT screen inside the unit, with a clear external display for everyday operation. Configuration is therefore protected from casual change while day-to-day use stays simple.
Supports the adaptive Pulse MIG process, and the SPEED, THIN and ROOT WeldModes, with which modes are available depending on the power source it is paired with.
The 2021 Red Dot design award-winning design gives well-considered ergonomics and an intuitive interface that reduces operator training needs. Internal LED lights at the spool and mechanism, and integrated storage for wear parts in the lid, are the kind of details that matter at 2 a.m. on a night shift.
16.8 kg at 595 × 250 × 430 mm, taking a 20 kg spool up to 300 mm diameter, and rated from −20 °C to +55 °C.
Technical data
Published manufacturer specifications. Where a figure affects your welding procedure, confirm it against the instruction manual for your specific configuration.
| Input voltage | 60 VDC |
|---|---|
| Welding output at 40 °C | 500 A at 60% duty cycle; 400 A at 100% |
| Standby power | 30 W |
| Welding processes | MIG/MAG, MIG/MAG Synergic, MIG Pulse, MMA (Stick)*, Gouging* |
| Wire spool capacity | 20 kg |
|---|---|
| Max spool diameter | 300 mm |
| Wire drive | PreciDrive |
| Spool compartment protection | SpoolSafe, IP54 |
| Dimensions (L × W × H) | 595 × 250 × 430 mm |
|---|---|
| Weight | 16.8 kg |
| Operating temperature | −20 °C to +55 °C |
| Protection class | IP54 |
| Certification mark | CE |
| Cooling | Water-cooled |
| Torch connection | Euro |
Ordering information
Quote these part numbers on your enquiry or LPO to guarantee the exact configuration. If you are unsure which variant suits your application, send us the joint details and we will specify it.
| Description | Part number | PreciDrive | SpoolSafe IP54 | RFID Panel Lock | TrueFlow | Heater |
|---|---|---|---|---|---|---|
| RobustFeed Edge BX, water-cooled, Euro | 0446600880 | Yes | Yes | Yes | — | — |
| RobustFeed Edge CX, water-cooled, digital gas control, heater, Euro | 0446600881 | Yes | Yes | Yes | Yes | Yes |
| Description | Part number | Cooler | Pulse | SPEED | THIN | ROOT |
|---|---|---|---|---|---|---|
| Warrior Edge 500 CX I (CE) | 0448500880 | Optional | — | — | — | — |
| Warrior Edge 500 CX II (CE) | 0448500881 | Optional | Yes | Yes | — | — |
| Warrior Edge 500 DX (CE, water-cooled) | 0446300886 | Integrated 1.4 kW | Yes | Yes | Yes | Yes |
Downloads
Need the instruction manual or spare parts list for this machine? Request it from weldiv@pofis.ae and we will send the current revision.
Frequently asked
The CX (0446600881) adds TrueFlow digital gas flow control and an integrated heater. Both share PreciDrive wire feed, SpoolSafe IP54 protection, RFID panel lock, water cooling and the Euro torch connection. Specify the CX if you want to control gas consumption or are working in conditions where condensation is a risk.
It means the enclosure is protected against dust ingress and water spray from any direction. For the wire compartment that matters directly: wire that has sat in a dusty, humid feeder picks up contamination and moisture, which shows up as porosity in the weld.
Up to 20 kg, with a maximum spool diameter of 300 mm. A 4-wheel feeder trolley is available for spools larger than 300 mm.
The Warrior Edge 500 CX (0448500880), CX II (0448500881) and DX (0446300886). Which WeldModes are available depends on the power source — the DX is the only one with THIN and ROOT.
It is an operator management system using key cards. It allows quick-jobs to be locked down with setting limits, so an operator cannot weld outside the parameters of the welding procedure specification. It enforces the WPS rather than relying on compliance.
Yes, both are listed as supported processes — though the outlet for them is on the power source rather than the feeder.
POFIS is an ESAB Authorized Distributor and Service Centre in Abu Dhabi. Request a quotation on this page or email weldiv@pofis.ae for price, lead time and delivery terms.
Procurement & supply
The ESAB RobustFeed Edge BX & CX Wire Feeder is supplied from Abu Dhabi by Perfect Oilfield & Industrial Supply LLC as an ESAB Authorized Distributor and Service Centre. The information below covers what procurement and QA/QC departments normally need before raising a purchase order.
Stock items dispatch from Abu Dhabi within 24–48 hours. Indent items are quoted with a confirmed lead time at the time of offer.
POFIS is an approved ADNOC vendor and is listed on the approved vendor lists (AVL) of major operators and EPC contractors across the GCC. We can complete supplier registration and prequalification documentation on request.
Standard credit terms are available to registered corporate accounts. LPO, LC and advance payment are all accepted.
Delivery across the UAE and the wider GCC. Quotations can be issued on EXW, FOB, CIF or DDP terms to suit your project.
Full manufacturer warranty, honoured locally. As an ESAB Authorized Service Centre we carry out warranty work and repairs in Abu Dhabi rather than returning equipment abroad.
In-UAE service, commissioning, operator training and spare parts backing for every machine we supply.
