ESAB · MIG/MAG & Flux-Cored Welding (GMAW / FCAW)
The ESAB Warrior Edge 500 DX is a 500 A water-cooled multi-process welding power source for MIG/MAG, Flux-Cored, Stick and TIG welding, rated 500 A at 39.0 V on a 60% duty cycle and 400 A at 100%, with an integrated 1.4 kW cooling unit, WeldCloud connectivity and the Pulse, SPEED, THIN and ROOT WeldModes.
Price on request. POFIS is an ESAB Authorized Distributor & Service Centre in Abu Dhabi — quotations include confirmed lead time and delivery terms.
Where it is used
Features
The high-performance THIN WeldMode reduces spatter levels and helps reduce distortion when welding thin plates. Distortion on thin material is expensive to correct and often cannot be corrected at all, so controlling heat input at the arc is worth more than any downstream fix.
The easy-to-control ROOT WeldMode is optimised for root passes and has gap bridging ability. A root pass across an inconsistent gap is where most pipeline rejects originate, and a mode built for it is the practical difference between the DX and the CX.
Cooling is built in at 1.4 kW with a 4.7 l coolant volume, 2.0 l/min maximum flow and 4.5 bar maximum pressure. The CX takes the optional external Cool 2 at 1.0 kW instead, so the DX has both more cooling capacity and one fewer unit to position and connect.
The adaptive optimised Pulse MIG process compensates for operator variation with a user-friendly setup, so results stay consistent across a crew of mixed experience rather than tracking whoever happens to be holding the torch.
WeldMode SPEED provides a focused arc that lets the welder handle the weld pool more easily at higher travel speeds, increasing productivity without losing pool control.
WeldCloud connectivity is built into the power source, so welding data is captured for quality assurance and traceability rather than needing a separate logger bolted on.

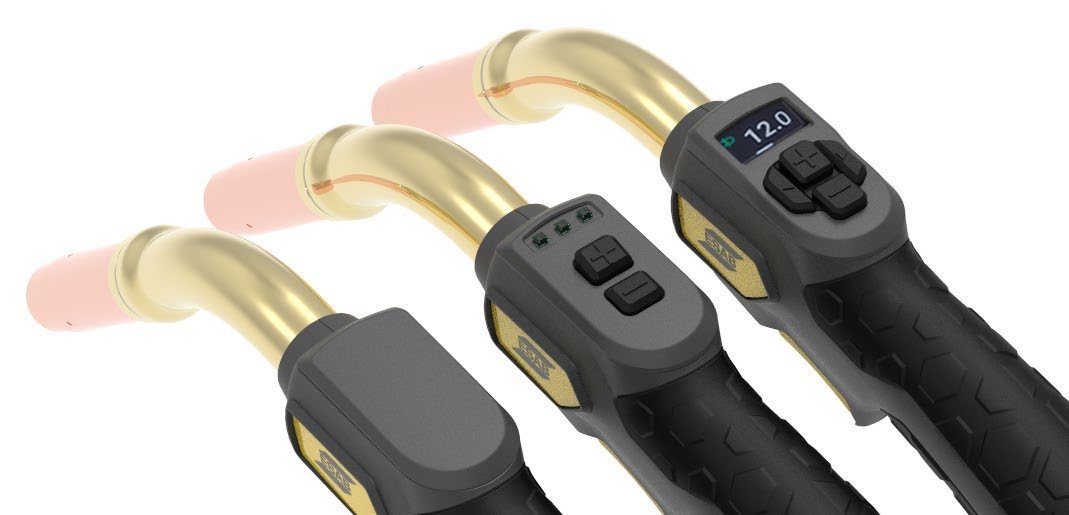

Integrates with the Exeor DX torch models’ graphic display remote without additional connectors. One fewer adapter in the chain is one fewer thing to fail on site.
Rated IP23 with an operating temperature range of −20 °C to +55 °C, application class S and insulation class H — specified for UAE ambient conditions and for environments with increased electrical hazard.
Technical data
Published manufacturer specifications. Where a figure affects your welding procedure, confirm it against the instruction manual for your specific configuration.
| Mains voltage | 380–460 V ±10%, 3-phase, 50/60 Hz |
|---|---|
| Standby power | 43 W |
| Open circuit voltage | 54.8 V |
| Efficiency at max current, MIG/MAG | 88% |
| Power factor at max current, MIG/MAG | 0.93 |
| Welding output — GMAW (MIG/MAG) | 500 A / 39.0 V at 60% duty cycle; 400 A / 34.0 V at 100% |
|---|---|
| Welding output — SMAW (MMA) | 500 A / 40.0 V at 60% duty cycle; 400 A / 36.0 V at 100% |
| Welding output — GTAW (TIG) | 500 A / 30.0 V at 60% duty cycle; 400 A / 26.0 V at 100% |
| Continuous output at 100% duty cycle | 400 A |
| Setting range — GMAW (MIG/MAG) | 16 A / 14.8 V – 500 A / 39 V |
| Setting range — SMAW (MMA) | 16 A / 20.6 V – 500 A / 40 V |
| Setting range — GTAW (TIG) | 5 A / 10.2 V – 500 A / 30 V |
| Cooling unit | Integrated |
|---|---|
| Cooling power | 1.4 kW |
| Coolant volume | 4.7 l |
| Max flow | 2.0 l/min |
| Max pressure | 4.5 bar |
| Dimensions (L × W × H) | 700 × 325 × 680 mm |
|---|---|
| Weight | 85 kg |
| Operating temperature | −20 °C to +55 °C |
| Enclosure class | IP23 |
| Application class | S |
| Insulation class | H |
| Certification mark | CE |
Ordering information
Quote these part numbers on your enquiry or LPO to guarantee the exact configuration. If you are unsure which variant suits your application, send us the joint details and we will specify it.
| Description | Part number |
|---|---|
| Warrior Edge 500 DX (incl. SPEED, THIN, ROOT), 380–460 V, CE | 0446300886 |
| Description | Part number | Cooler | Pulse | SPEED | THIN | ROOT |
|---|---|---|---|---|---|---|
| Warrior Edge 500 CX I (CE) | 0448500880 | Optional | — | — | — | — |
| Warrior Edge 500 CX II (CE) | 0448500881 | Optional | Yes | Yes | — | — |
| Warrior Edge 500 DX (CE, water-cooled) | 0446300886 | Integrated 1.4 kW | Yes | Yes | Yes | Yes |
| Description | Part number |
|---|---|
| RobustFeed Edge BX, water-cooled, Euro | 0446600880 |
| RobustFeed Edge CX, water-cooled, digital gas control, heater, Euro | 0446600881 |
| Description | Part number |
|---|---|
| Cool 2 cooling unit | 0465427880 |
| Coolant, 10 l | 0465720002 |
| 4-wheel trolley, power source | 0349313450 |
| Counterbalance arm, RobustFeed Stabilizer kit 0465509880 required when used with trolley 0349313450. | 0448181880 |
| Counterbalance arm extension kit, for 6 m and 7.5 m torches | 0448116880 |
| Stabilizer kit for counterbalance arm | 0465509880 |
| Wheel kit, power source | 0465416880 |
| Feeder mounting kit, power source assembly incl. cable holders | 0447518880 |
| RobustFeed wheel kit Extension kit 0465508880 required when used with trolley 0349313450. | 0446081880 |
| Guide pin extension kit | 0465508880 |
| Torch holder, RobustFeed | 0446958880 |
| Torch strain relief, RobustFeed | 0446082880 |
| Boom adaptor (lifting device) | 0446956880 |
| Quick connector, Marathon Pac | F102440880 |
| 4-wheel feeder trolley for >300 mm spools | 0349313700 |
Downloads
Need the instruction manual or spare parts list for this machine? Request it from weldiv@pofis.ae and we will send the current revision.
Frequently asked
Two things. The DX has an integrated 1.4 kW cooling unit where the CX takes an optional external Cool 2 at 1.0 kW. And the DX adds the THIN and ROOT WeldModes on top of Pulse and SPEED. Electrical output is identical — both give 500 A at 60% duty cycle and 400 A at 100%.
Root passes. It has gap bridging ability and is described by ESAB as easy to control, which addresses the specific difficulty of running a root across an inconsistent gap — the stage where most pipeline rejects originate.
It reduces spatter levels and helps reduce distortion when welding thin plates. Distortion on light gauge is expensive to correct and frequently cannot be corrected, so controlling heat input at the arc is the only real fix.
Yes — cooling is integrated at 1.4 kW, with 4.7 l coolant volume, 2.0 l/min maximum flow and 4.5 bar maximum pressure. It is supplied ready for water-cooled torches.
500 A at 39.0 V on a 60% duty cycle and 400 A at 34.0 V continuously at 100% in MIG/MAG, from a 380–460 V three-phase supply.
The RobustFeed Edge BX (0446600880) or the RobustFeed Edge CX (0446600881). Both are water-cooled with a Euro connection; the CX adds TrueFlow digital gas control and a heater.
POFIS is an ESAB Authorized Distributor and Service Centre in Abu Dhabi. Request a quotation on this page or email weldiv@pofis.ae for price, lead time and delivery terms.
